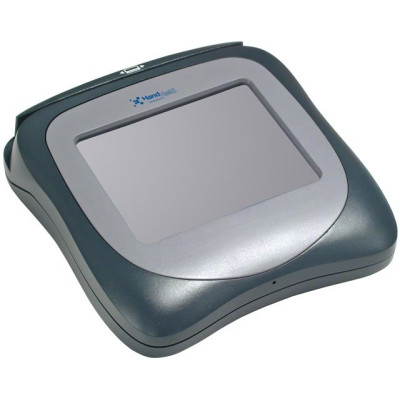

Hand Held TT8500 Signature Pad

Handheld Products introduces the revolutionary Transaction Team 8500. This state-of -the-art terminal offers unrivaled power, versatility, and value. POS payments, EBT, signature capture, and in-lane, targeted communications are enabled by the TT8500's fast processor and proven development environment. The TT8500 comes standard with features that are not available or cost extra with other terminals. PoweredUSB, 4MB flash, 16MB of RAM, and a 3-track magnetic stripe card reader are standard. Choose a color LCD, additional memory, USB host, and 10/100BASE-T Ethernet factory options.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Card Reader - The bidirectional, 3-track magnetic stripe reader ensures a high read rate and customer ease-of-use.
Color or Monochrome LCD - Your choice of a vibrant color or crisp monochrome LCD gives impact to the messages you want your customers to notice.
Communication - Abundant choices for powerful connections to your legacy and state-of-the-art systems.
Ethernet Channel - Simultaneous communications to an Ethernet port off-loads high bandwidth transmissions.
Exciting Design - Functional and ergonomic design for fast, accurate transactions.
Field Replaceable Screen Protector - Designed and tested for the retail environment with a low cost, passive, tethered stylus, and replaceable screen protector.
SDK - Build custom, secure applications using Handheld Products' proven development environment.
Security - Visa PED approved with a dedicated security processor. Customer PINs are secured with industry standard encryption.
True Finger Touch - A light finger touch or tap of the stylus is all that is needed to activate the TT8500.

TT8500 Specs (pdf)

Transaction Team 8500 Specifications

Display/Signature Window
Signature Window: Resistive, transparent, pressure-sensitive touch screen

LCD Size: 4.45 x 3.3 in. (11.3 x 8.4 cm) (Active area)

LCD Resolution: 320 x 240 dot, 16 bit color (optional)

Touch Pad Resolution: 903 x 1238 ppi

Communications

RS-232: 4800 to 115.2 Kbps

RS-232 Pass-Through: Using Aux. Y cable with AC power adapter

RS-485: Using 9A, 9B, 4B connectors (no power adapter)

PC USB: AC power adapter required

USB Hub Host: 5V DC power pass-through, support for USB 1.1 and 2.0 for up to 16 devices (optional port)

IBM Retail USB: SurePOS compatible (no power adapter)

Ethernet 10/100 BaseT: Optional port. Cable not supplied.

Memory

Flash: 4MB to 16MB
SDRAM: 16MB to 64 MB

Dimensions (reference)

Width: 7.3 in. (18.5 cm)

Depth: 7.56 in. (19.2 cm)

Height: 2 in. (5.1 cm)

Weight: 2 lb. (.9 kg)

Power Requirements

Current Draw: 700 mA @ 12VDC
Source: 120V AC adapter or powered host terminal port

Optional Software Development Kit

Operating Systems: Microsoft

Extended Details

Refine Your Options

Honeywell TT8500 Signature Pad
Part #: TT8500-CEUEKITE | SKU: HON60513

Honeywell Honeywell - Triple DES (64-bit), Triple DES (128-bit), DES - Serial - Signature Capture
Honeywell TT8500 Signature Pad
Part #: TT8501-CEUE | SKU: HON60514

TT8500, Transaction Team 8501 Signature Capture Terminal (Color, LCD, PCI Compliant, TRN TERM, 3-Track MSR and Ethernet)
Honeywell TT8500 Signature Pad
Part #: TT8501P-CEUEKITE | SKU: HON63111

Honeywell Transaction Terminal TT8500 Signature Pad - LCD - 4.45 x 3.30 Active Area LCD - USB
Honeywell TT8500 Signature Pad
Part #: TT8501P-MEUE | SKU: HON70750

TT8500, Transaction Team 8501 Signature Capture Terminal (Monochrome, LCD, PCI Compliant, TRN TERM, 3-Track MSR and Ethernet)

Recommended Accessories for Model: Hand Held TT8500 Signature Pad

Honeywell TT8500 Signature Pad
Part #: 100008100 | SKU: HON286934

SCREEN PROTECTOR, IMPROVED TT8501 PCI
Honeywell TT8500 Accessory
Part #: 300000830 | SKU: HON31708

Tethered Stylus Holder (with Screw and 2-Sided Tape) for the TT8500
Honeywell TT8500 Accessory
Part #: 42206251-02E | SKU: HON24933

Cable (30 Feet, RS-232 Cable, DB9 Female) for the TT8810, 8870 and 8500
Honeywell TT8500 Accessory
Part #: 100000583 | SKU: HON21418

Replaceable Screen Protector Overlay - Use With Bezel Tt8500
Honeywell TT8500 Accessory
Part #: 300000100 | SKU: HON24876

Tethered Stylus Holder (with Screw Tethered with 2-Sided Tape) for the TT8500
