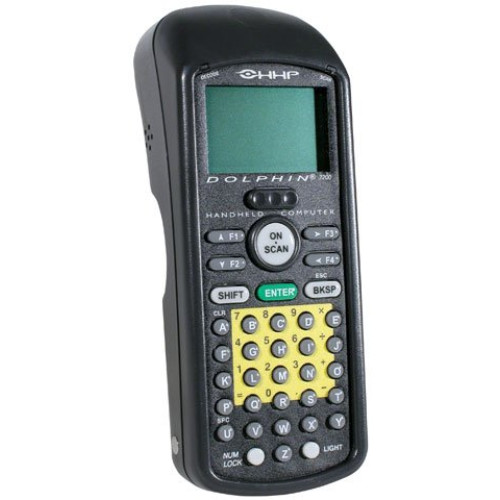

Hand Held Dolphin 7200 Mobile Computer
Hand Held Barcode Scanner, Mobile Handheld Computer & Verifier

Hand Held Dolphin 7200 Mobile Computer
Part #: 90030080 | SKU: 6288

The Dolphin 7200 is a rugged pocketsize computer and bar code scanner with an open DOS architecture and up to 12 MB of memory. Ergonomically designed for both right and left-handed use the Dolphin 7200 is available with a variety of integrated scanning options for exceptional performance on all major linear bar code symbologies.

Hand Held Dolphin 7200 Mobile Computer

Part Details: 2D Handheld Computer (with LX Imager, 2MB RAM, 8MB Flash, 9-Line x 20-Character Display, 36 key Alphanumeric Keyboard, NiMH Battery, Software and User's Guide)
Need a different version of the Hand Held Dolphin 7200 Mobile Computer? View all 9 configurations

Additional Information

Data Collection Type Batch
Manufacturer No
Model Name Dolphin 7200
Operating System No
Product Condition No
RAM Memory No
Scanner Type No
Dolphin 7200 Specs Dolphin 7200 Specs (pdf)

Technical Information

  • Operating System: GS-DOS
  • Processor: ELAN SC310 20MHz
  • Scanner Type: Imager Long Range
  • Symbologies Supported:
    • Code 3 of 9
    • Interleaved 2 of 5
    • EAN
    • Codabar
    • Code 128
    • Code 93
    • UPC
    • Code 11
    • IATA 2 of 5
    • MSI
    • UPC-A
    • UPC EO
    • UPC EI
    • EANISAN13
    • EANISAB8
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • Aztec
    • QR Code
    • Code 49
    • UCC RSS
    • Aztec Mesa
    • RSS-14
    • Coda Block
    • OCR-A
    • OCR-B
    • Postnet
    • Planet Code
    • BPO4 State
    • Canadian 4 State
    • Dutch Postal
    • Australian 4-State
    • Japanese Post

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 7200 2D Mobile Computer

Physical Characteristics

  • Keyboard: 36 Key Alpha Shifted Numeric
  • Battery Capacity: 1500 mAh
  • Battery Type: NiMH
  • Weight: 13.8 oz - with Battery

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 0 to 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV
  • Drop Spec: 5' To Concrete

Agency Approvals

  • Agency Approvals:
    • FCC class A
    • CE Mark
    • UL 94-VO

Memory

  • RAM Memory: 2MB
  • Flash Memory: 8MB

Warranty

  • Manufacturer Warranty: 2 Year(s)
Extended Details
