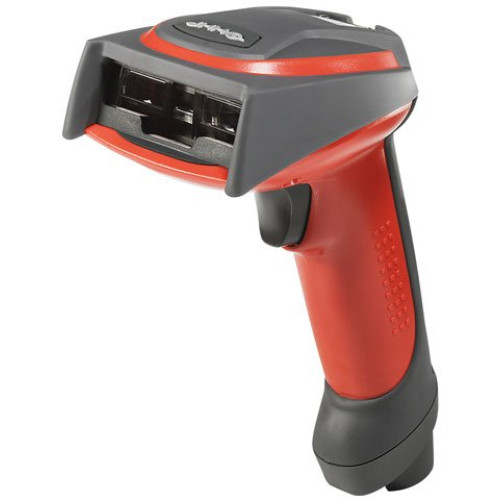

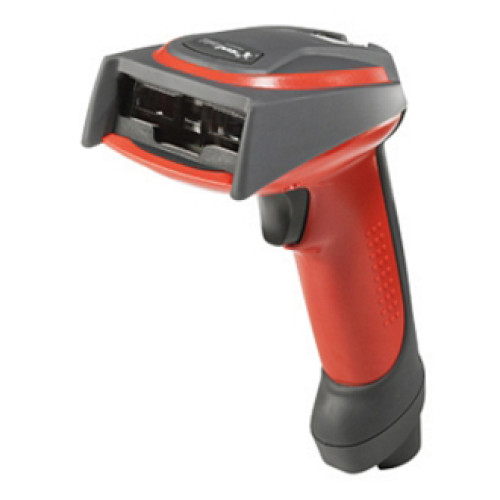

Hand Held ImageTeam 5800 Barcode Scanner
Part #: 5800SR050-0F00 | SKU: 8649

The IMAGETEAM 5800 Industrial image readers are the first industrial class readers to bring you Hand Held Products industry-leading image technology, allowing you to read bar codes at ranges exceeding 82 inches (208cm).----In addition to read range, the IT5800s key differentiator is its ability to withstand the most demanding industrial environments. Packaged with co-molded rubber polymers, the housing will absorb the shock from repeated drops and continue to outperform all bar code readers in its class.

Hand Held ImageTeam 5800 Barcode Scanner

Part Details: Industrial Linear Imager (Includes Scanner-5800SR050, USB Cable-42206161-01 and User Guide)

Need a different version of the Hand Held ImageTeam 5800 Barcode Scanner? View all 7 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 5800
Product Condition	No
Scanner Capability	1D
Scanner Type	No
Specialty Encoding	None

ImageTeam 5800 Specs (pdf)

Technical Information

Scan Pattern: Linear
Connectivity Technology: Cable
Image Sensor: Imager
Barcode Symbology Supported:
- Codabar
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- Code 39
- Codabar
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- Code 39
Maximum Scan Resolution: 7.50 mil
Depth of Field:
- 6.50" - 15"@7.50 mil
- 2.50" - 28"@ - 100% UPC
- 2.50" - 31"@15 mil
- 1.50" - 42"@20 mil
- 4" - 82"@55 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 5800 SR
Product Name: IMAGETEAM 5800 SR Barcode Reader
Product Line: IMAGETEAM

Physical Characteristics

Height: 6.4"
Width: 3.2"
Depth: 5.3"
Weight (Approximate): 7.50 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- IMAGETEAM 5800SR Barcode Reader
- USB Commercial cable (42206161-01)
- User's Guide
- IMAGETEAM 5800SR Barcode Reader
- USB Commercial cable (42206161-01)
- User's Guide
Certifications & Standards:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- UL
- cUL Listed
- TÜV
Additional Information:
- Supported Interfaces:
- TTL level RS-232
- Keyboard Wedge
- IBM 468X/469X
- Wand Emulation
- USB

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 14 V DC

Extended Details
