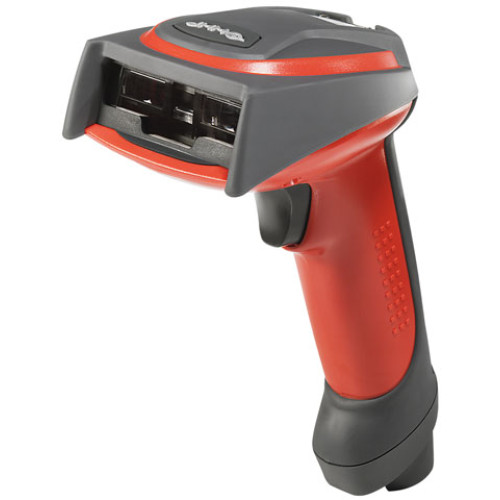

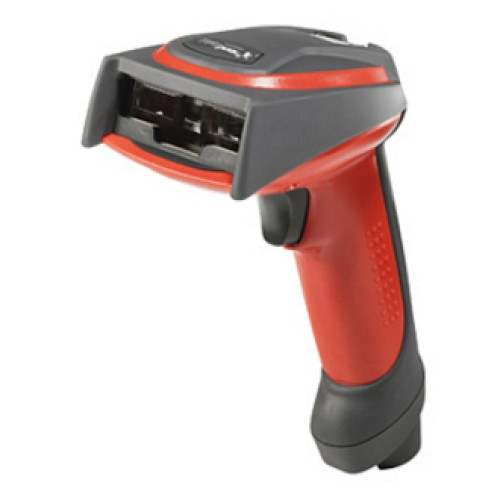

Hand Held ImageTeam 5800 Barcode Scanner
Part #: 5800SR050-0C00 | SKU: 15843

The IMAGETEAM 5800 Industrial image readers are the first industrial class readers to bring you Hand Held Products industry-leading image technology, allowing you to read bar codes at ranges exceeding 82 inches (208cm).----In addition to read range, the IT5800s key differentiator is its ability to withstand the most demanding industrial environments. Packaged with co-molded rubber polymers, the housing will absorb the shock from repeated drops and continue to outperform all bar code readers in its class.

Hand Held ImageTeam 5800 Barcode Scanner

Part Details: Industrial Linear Imager (Keyboard wedge Interface, Combo Cable - 42206212-02, User Guide and No Aimer Beam)

Need a different version of the Hand Held ImageTeam 5800 Barcode Scanner? View all 7 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 5800
Product Condition	No
Scanner Capability	1D
Scanner Type	No
Specialty Encoding	None

ImageTeam 5800 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 7.5 mil(s) - at 9"
Symbologies Supported:
- Codabar
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Post
- RSS
- Code 39
Scanner Type: Imager
Interface Options:
- TTL level RS-232
- Keyboard Wedge
- IBM 468X/469X
- Wand Emulation
- USB
Interface Connectivity: Corded
Scan Pattern: Linear
Input Voltage Range: 4.5 to 14 V DC
Depth of Field:
- 6.5 - 15"@7.5mils - Narrow Width (300 Lux Lighting)
- 2.5 - 28" - 100% UPC
- 2.5 - 31"@15mils - Narrow Width (300 Lux Lighting)
- 1.5 - 42"@20mils - Narrow Width (300 Lux Lighting)
- 4 - 82"@55mils - Narrow Width (300 Lux Lighting)

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 5800 SR Barcode Scanner

Physical Characteristics

Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
Weight: 7.5 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- UL
- cUL Listed
- TÃ
