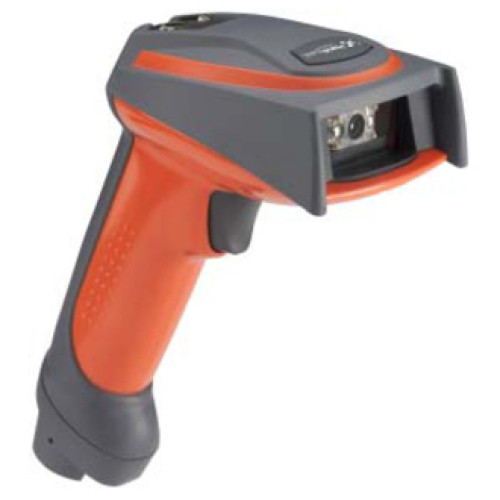

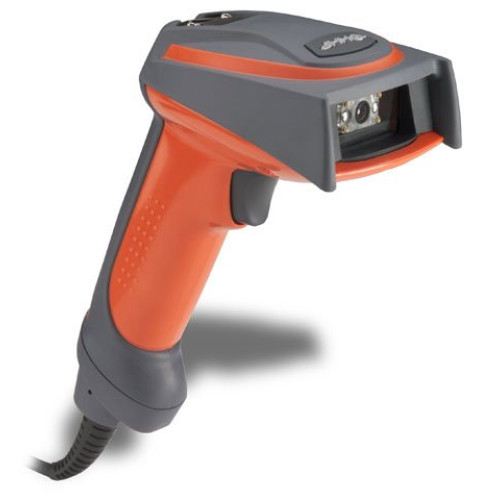

Hand Held ImageTeam 4800 Barcode Scanner
Part #: 4800SR051C-0G00 | SKU: 8633

The IMAGETEAM 4800 Industrial 2D Area Imager is the first hand held area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Hand Held ImageTeam 4800 Barcode Scanner

Part Details: Industrial 2D Area Imager (Complete Decode, Keyboard wedge Interface and User Guide)

Need a different version of the Hand Held ImageTeam 4800 Barcode Scanner? View all 10 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 4800
Product Condition	No
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

ImageTeam 4800 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN-UCC Composite
- Codabar
- Code 39
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- RSS
- Postnet
- Planet Code
- British Post
- China Post
- Canadian Post
- Japanese Post
- Kix
- OCR-A
- OCR-B
- China Postal Code
Scanner Type: Imager
Interface Options:
- Keyboard Wedge
- TTL level RS-232
- IBM 468X/469X
- Wand
- USB
Interface Connectivity: Corded
Input Voltage Range: 4.0 to 14 V DC
Depth of Field:
- 3 - 7.1"@8.3mils - Linear
- 1.6 - 12.7"@13mils - UPC
- 4 - 5.7"@6.6mils - PDF417
- 2.6 - 8.5"@10mils - PDF417
- 1.8 - 9.7"@15mils - Data Matrix
- 1.5 - 12.5"@35mils - Maxi Code

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Line: IMAGETEAM
Product Name: IMAGETEAM 4800SR Barcode Scanner

Physical Characteristics

Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
Weight: 7.5 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL
- TÃ
