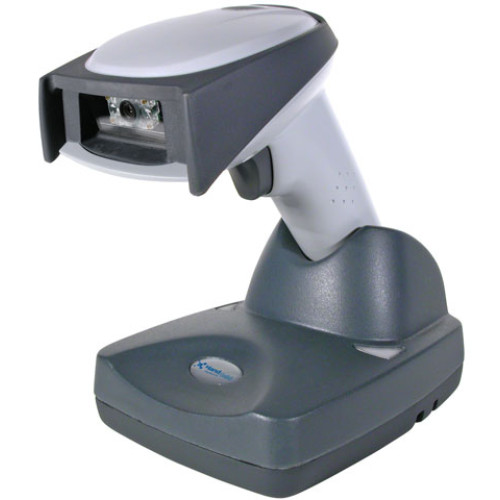

Hand Held ImageTeam 4620 Barcode Scanner
Part #: 4620SR0C1CB-0FA0 | SKU: 15127

The IMAGETEAM 4620 delivers all the benefits of the IT4600, plus the freedom of wireless operation. In a single mobile product solution, you'll be able to perform world-class 2D and PDF reading, as well as reading linear, matrix, postal, OCR, and dozens of other specialty codes. Hand Held Products cordless imagers feature Bluetooth Class II v1.2 technology providing 10 meters (33 feet) of read range and utilizes adaptive frequency hopping for improved performance in existing RF environments. Its power is provided by a lithium ion battery capable of delivering up to 25,000 reads between charges. Powered by Adaptus Imaging Technology, the IT4620 also comes fully equipped with digital imaging capabilities allowing you to take pictures and capture signatures for the ultimate in data management versatility. And, with no internal moving parts, the IT4620 will provide years of reliable service even in the most demanding environments.

Hand Held ImageTeam 4620 Barcode Scanner

Part Details: 4620 Cordless 2D Area Imager (USB Kit, Cable, Base and Power supply)

Need a different version of the Hand Held ImageTeam 4620 Barcode Scanner? View all 8 configurations

Additional Information

Connectivity	No
Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 4620
Product Condition	No
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

ImageTeam 4620 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- PDF 417
- Micro PDF417
- MaxiCode
- DataMatrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN-UCC Composite
- Codabar
- Code 39
- Interleaved 2 of 5
- Code 93
- Code 128
- UPC
- EAN
- RSS
- Coda Block
- Planet Code
- Postnet
- British Post
- Canadian Post
- Japanese Post
- Kix
- OCR-A
- OCR-B
Scanner Type: Imager
Interface Options: USB
Interface Connectivity: Cordless
Cordless Range: 10m
Input Voltage Range: 4.5 to 12 V DC
Power Supply: Internal Battery
Depth of Field:
- 2.9 - 7"@8mils - Linear
- 1.9 - 11.9"@13mils - UPC
- 3.9 - 5.7"@6.6mils - PDF417
- 2.5 - 8.4"@10mils - PDF417
- 3.1 - 5.9"@15mils - Data Matrix
- 1.4 - 12.4"@35mils - MaxiCode
Battery Capacity: 4.2 V

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 4620 SR Barcode Scanner

Physical Characteristics

Dimensions:
- 6.5" (165.1mm) - Scanner
- 3.1" (78.74mm) - Base
Weight:
- 9 oz
- 8.8 oz - Without Cable

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL listed
- TÃ

Extended Details

Recommended Accessories for Model: Hand Held ImageTeam 4620 Barcode Scanner

Hand Held ImageTeam 4620 Accessory
Part #: 42203758-03S | SKU: 22598

Cable, RS-232, TTL, 8 ft, for the 5620/4620
Hand Held ImageTeam 4620 Accessory
Part #: 2020-5B | SKU: 24874

Base (for the 4620 Unit)
Hand Held ImageTeam 4620 Accessory
Part #: 2020-CB-A | SKU: 24875

Cordless Base (with Charging Function - US) for the IT5620/4620
