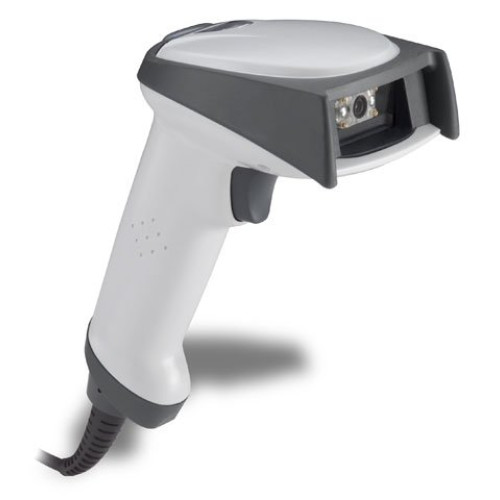

Hand Held ImageTeam 4600 Barcode Scanner
Part #: 4600SR051P-0A00 | SKU: 15845

The IMAGETEAM 46002D area imager from Hand Held Products combines the versatility of area imaging with the speed and cost of linear scanning for a wide range of applications. Powered by Adaptus imaging, the IT46002D is full featured, fast, and cost effective.

Hand Held ImageTeam 4600 Barcode Scanner

Part Details: IT46002D Retail-Commercial Grade Area Imager (Standard Range Imager, UHOLDER, Keyboard wedge Mini Din Cable-42206132-02, User Guide, PDF417 Decode ID, PDF417 and Image Capture and Green Aimer)

Need a different version of the Hand Held ImageTeam 4600 Barcode Scanner? View all 16 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 4600
Product Condition	No
Specialty Encoding	None

ImageTeam 4600 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 8 mil(s)
Symbologies Supported:
- Codabar
- Code 39
- Interleaved 2 of 5
- Code 93
- Code 128
- UPC
- RSS
- Coda Block
- EAN
- PDF 417
Scanner Type: Imager
Interface Options:
- Keyboard Wedge
- TTL level RS-232
- IBM 468X/469X
- Wand Emulation
- USB
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage Range: 4.5 to 12 V DC
Depth of Field:
- 2.9 - 7"@8mils - Linear
- 1.9 - 11.9"@13mils - UPC
- 1.4 - 12.4"@35mils - MaxiCode

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 4600SR Retail/Commercial 2D Imager

Physical Characteristics

Dimensions: 6.2" (157.48mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
Weight: 6.5 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL listed
- TUV

Other

Package Contents:
- IMAGETEAM 4600SR Retail/Commercial 2D Imager
- Keyboard wedge Mini Din cable (42206132-02)
- User's Guide
Cables Included: Keyboard Wedge

Environmental Conditions

Temperature:
- 32Â°F (0Â°C) to 122Â°F (50Â°C) Operating
- -40Â°F (-40Â°C) to 140Â°F (60Â°C) Storage
Humidity: 0 to 95%

Warranty

Manufacturer Warranty: 5 Year(s)

Extended Details
