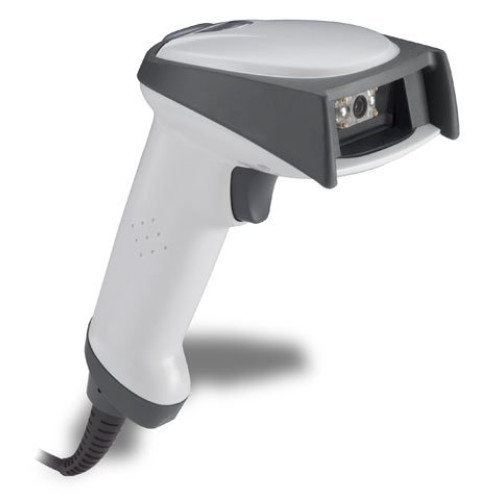

Hand Held ImageTeam 4600 Barcode Scanner
Part #: 4600SR051C-0A00 | SKU: 9544

The IMAGETEAM 46002D area imager from Hand Held Products combines the versatility of area imaging with the speed and cost of linear scanning for a wide range of applications. Powered by Adaptus imaging, the IT46002D is full featured, fast, and cost effective.

Hand Held ImageTeam 4600 Barcode Scanner

Part Details: IT46002D Retail-Commercial Grade Area Imager (Complete Decode and Keyboard wedge Kit)

Need a different version of the Hand Held ImageTeam 4600 Barcode Scanner? View all 16 configurations

Additional Information

Form Factor	No
Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 4600
Product Condition	No
Specialty Encoding	None

ImageTeam 4600 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 8 mil(s)
Symbologies Supported:
- Code 93
- Code 39
- Code 128
- Codabar
- UPC
- EAN
- RSS
- Interleaved 2 of 5
- Coda Block
- PDF
- Matrix
- OCR
Scanner Type: Imager
Interface Options: Keyboard Wedge
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage Range: 4.5 to 12 V DC
Depth of Field:
- 2.9 - 7"@8mils - Linear
- 1.9 - 11.9"@13mils - UPC
- 3.9 - 5.7"@6.6mils - PDF417

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 4600PDF Imager

Physical Characteristics

Dimensions: 6.2" (157.48mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
Weight: 6.2 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL listed
- TÃ

Extended Details
