Additional Information
| Connectivity | No |
|---|---|
| Included Cables | USB |
| Manufacturer | No |
| Model Name | ImageTeam 3875 |
| Product Condition | No |
| Specialty Encoding | None |

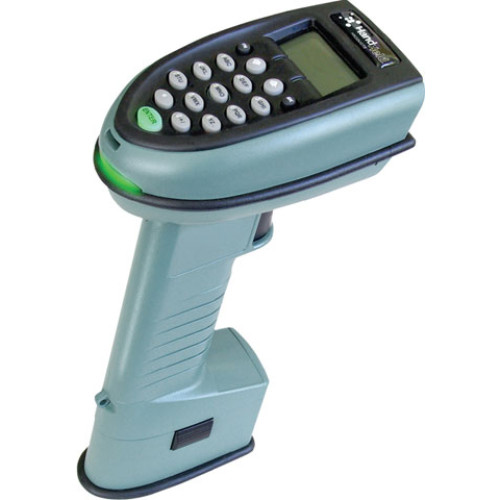

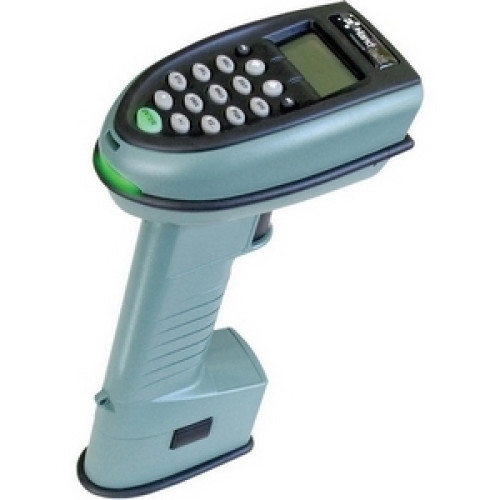

ImageTeam 3875 Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Bi-directional
- Scan Rate: 270 scan/s
- Connectivity Technology: Wireless
- Scanning Distance: 100 ft
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-13
- Bookland EAN
- EAN-8
- RSS
- Code 39
- Code 128
- UCC/EAN 128
- ISBT 128
- Code 11
- Codabar
- Code 93
- Interleaved 2 of 5
- Straight 2 of 5
- IATA
- Matrix 2 of 5
- Telepen
- PDF 417
- Micro PDF417
- EAN-UCC Composite
- UPC-A
- UPC-E
- EAN-13
- Bookland EAN
- EAN-8
- RSS
- Code 39
- Code 128
- UCC/EAN 128
- ISBT 128
- Code 11
- Codabar
- Code 93
- Interleaved 2 of 5
- Straight 2 of 5
- IATA
- Matrix 2 of 5
- Telepen
- PDF 417
- Micro PDF417
- EAN-UCC Composite
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 1.20" - 1.90"@5 mil
- 1" - 6.20"@7.50 mil
- 1" - 8.20"@15 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: 3875PDF
- Product Name: IMAGETEAM 3875PDF Barcode Reader
- Product Line: IMAGETEAM
Physical Characteristics
- Height: 8.7"
- Width: 3.2"
- Depth: 4.7"
- Weight (Approximate): 0.65 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Package Contents:
- IMAGETEAM 3875PDF Interactive Cordless Linear Imager
- Keypad
- Display
- Charge Pack
- Cordless Base Station (2070-5X)
- Quick Start Guide
- System Manual
- IBM PS/2 keyboard wedge cable (42205021-01)
- IMAGETEAM 3875PDF Interactive Cordless Linear Imager
- Keypad
- Display
- Charge Pack
- Cordless Base Station (2070-5X)
- Quick Start Guide
- System Manual
- IBM PS/2 keyboard wedge cable (42205021-01)
- Certifications & Standards:
- Electromagnetic:
- Emissions/Immunity:
- FCC Part 15 Class B
- SOR 88/475 Class B
- EN 55022 (CISPR22) Class B
- EN 61000-3-2 & -3
- ETS 300 826
- EMC 89/336/EEC
- EN 50082-1:1992
- IEC 801-2:1991
- IEC 801-3:1984
- IEC 801-4:1988
- Electrical Safety:
- UL
- C22.2 No 950/UL 1950
- cUL
- TUV Rheinland GS Licensed EN 60950 (IEC950)
- AS/NZS 3548
- Radio:
- FCC Part 15.249
- RSS 210
- ETS 300 328
- Additional Information:
- Supported Interface:
- Keyborad Wedge
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Network & Communication
- Radio Frequency: Yes
Warranty
- Limited Warranty: 3 Year
Recommended Accessories for Model: Hand Held ImageTeam 3875 Barcode Scanner
-
Hand Held ImageTeam 3870 Accessory
Part #: CLESS/NIMH/S | SKU: 4635Battery Charge Pack (NiMH) for the 3870-5770 Scanners -
Hand Held ImageTeam 3875 Accessory
Part #: 2070-5A | SKU: 21912SCANTEAM 2070 Cordless Base Station (US-Cananda - Holds up to 9 Scanners, System Manual) for the 3870, 3875 and 5770 Scanners -
Hand Held ImageTeam 3875 Accessory
Part #: 3870-75-5770-QS | SKU: 21913Quick Start Guide (for the 3870, 3875 and 5770 Cordless Scanners) -
Hand Held ImageTeam 3875 Accessory
Part #: 3870/75/5770/SM | SKU: 21914System Manual (for the 3870, 3875 and 5770 Cordless Scanners) -
Hand Held ImageTeam 3875 Accessory
Part #: CLESS/UC2/S | SKU: 219152 bay charge strip, requires local PC (Part# IEC320) power cord. Recommended for use in Australia, New Zealand, and South Africa
