Hand Held ImageTeam 3870 Barcode Scanner Hand Held ImageTeam 3870 Barcode Scanner Hand Held ImageTeam 3870 Barcode Scanner
Hand Held Barcode Scanner, Mobile Handheld Computer & Verifier

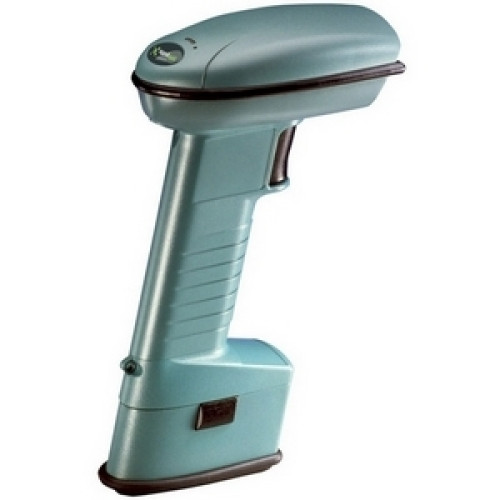

Hand Held ImageTeam 3870 Barcode Scanner
Part #: 3870PDFK-A2-232 | SKU: 4630

Hand Held Products is pleased to introduce linear imaging technology in a cordless scanner. A bright sharp aiming line and high-resolution imaging combine to deliver bar code reading performance that was previously only possible using a laser scanner. The IT3870 joins a family of rugged and reliable cordless products including the SCANTEAM 2070 host interface base unit. The IT3870PDF is designed for aggressive reading performance on PDF417 and MicroPDF417. The IT3870HD reads high-density bar codes with dimensions as small as 3 mil. while the IT3870LX reads 15 mil. codes out to 18 inches. All of these configurations feature an IP 54 sealed-enclosure rating and the industry's best drop specification for cordless scanners.

Hand Held ImageTeam 3870 Barcode Scanner

Part Details: Linear Imager Kit (includes Cordless PDF417 Linear Imager, RS-232 Interface, and Group A Software)
Need a different version of the Hand Held ImageTeam 3870 Barcode Scanner? View all 9 configurations

Additional Information

Included Cables USB
Manufacturer No
Model Name ImageTeam 3870
Product Condition No
Specialty Encoding None
ImageTeam 3870 Specs ImageTeam 3870 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 128
    • ISBT 128
    • UPC-E
    • UPC
    • EAN/JAN
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 11
    • Telepen
    • RSS
    • ISBN
    • PDF 417
    • Micro PDF417
    • EAN-UCC Composite
  • Scanner Type: Imager
  • Scan Rate: 270 Scans/sec
  • Interface Options: RS-232
  • Interface Connectivity: Cordless
  • Cordless Range: 100'
  • Input Voltage:
    • 120 V AC
    • 240 V AC
  • Input Voltage Range: 4 to 14 V DC
  • Depth of Field:
    • 1.2 - 4.5"@5mils
    • 1 - 6.5"@7.5mils
    • 1 - 8.2"@15mils

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 3870PDF Cordless Linear Imager

Physical Characteristics

  • Weight:
    • 16 oz - Scanner
    • 7.25 oz - Base without Cable

Agency Approvals

  • Agency Approvals:
    • USA: FCC Part 15 Class B
    • Canada: SOR 88/475 Class B
    • Europe: EN 55022 (CISPR22) Class B
    • EN 61000-3-2 & -3
    • ETS 300 826
    • USA: UL listed
    • C22.2 No 950/UL 1950
    • Canada: cUL Listed
    • Europe: TUV Rheinland GS Licensed
    • EN 60950 (IEC950)
    • Australia: AS/NZS 3548
    • USA: FCC Part 15.249
    • Canada: RSS 210
    • Europe: ETS 300 328
    • EMC 89/336/EEC
    • EN 50082-1:1992
    • IEC 801-2:1991
    • IEC 801-3:1984
    • IEC 801-4:1988

Other

  • Package Contents:
    • IMAGETEAM 3870PDF Cordless Linear Imager
    • Aux Port Cable (part number 42205910-04)
    • Power Supply (part number PS120/9V)
    • Charge Pack
    • Cordless Base Station (Part Number 2070-1X)
    • Quick Start Guide
    • System Manual
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating - Scanner
    • -30°C (-22°F) to 60°C (140°F) Storage - Scanner
    • -20°C (-4°F) to 50°C (122°F) Operating - Base
    • -40°C (-40°F) to 70°C (158°F) Storage - Base
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
Extended Details
