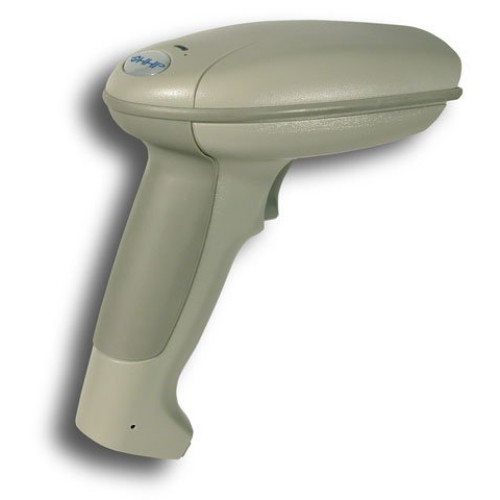

Hand Held ImageTeam 3800 Barcode Scanner
Part #: 3800PDF-USBKITE | SKU: 29946

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held ImageTeam 3800 Barcode Scanner

Part Details: ImageTeam 3800, USB kit, includes scanner, USB cable (42206368-01E), and Quick Start Guide.

Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 49 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 3800
Product Condition	No
Specialty Encoding	None

ImageTeam 3800 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 15 mil(s)
Symbologies Supported:
- PDF 417
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- RSS
- China Postal Code
Scanner Type: Linear Imager
Scan Rate: 270 Decodes per second
Interface Options:
- Keyboard Wedge
- RS-232
- Wand Emulation
- HHLC Non-decoded Laser Compatible
- USB
Interface Connectivity: Corded
Scan Pattern: Linear
Input Voltage: 5 V DC
Depth of Field:
- 3 - 4.5"@10mils - PDF 417
- 3 - 5"@15mils - PDF 417
- 1 - 8" - 100% UPC

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Name: 3800PDF Barcode Scanner

Physical Characteristics

Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
Weight: 6.3 oz
Color: Beige

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED Safety: Class 1
- UL
- cUL
- TÃ
