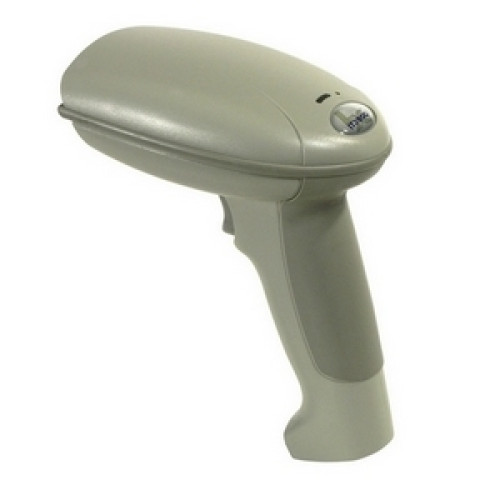

Hand Held ImageTeam 3800 Barcode Scanner
Part #: 3800LX-12CMBKIT | SKU: 4684

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held ImageTeam 3800 Barcode Scanner

Part Details: 3800LX Barcode scanner Kit (Extended Long Range, Keyboard wedge, Holder, Cable Kit and Quick Start Guide)

Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 49 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 3800
Product Condition	No
Scanner Capability	1D
Scanner Type	No
Specialty Encoding	None

ImageTeam 3800 Specs (pdf)

Technical Information

Scan Rate: 270 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- Codabar
- PARAF
- Interleaved 2 of 5
- RSS Code
- Matrix 2 of 5
- Code 11
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- Codabar
- PARAF
- Interleaved 2 of 5
- RSS Code
- Matrix 2 of 5
- Code 11
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
Maximum Scan Resolution: 3 mil
Depth of Field:
- 3" - 36"@40 mil
- 2" - 16"@ - 100% UPC

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 3800LX
Product Name: IMAGETEAM 3800LX-12CMBKIT Barcode Reader
Product Line: IMAGETEAM

Physical Characteristics

Height: 6"
Width: 3.1"
Depth: 5.3"
Weight (Approximate): 6.30 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Package Contents:
- 3800LX Linear Imager
- 38HOLDER
- Combo Cable
- Quick Start Guide
- 3800LX Linear Imager
- 38HOLDER
- Combo Cable
- Quick Start Guide
Certifications & Standards:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Safety:
- Class 1
- UL
- cUL listed
- TUV
Additional Information:
- Supported Interfaces:
- Keyboard Wedge
- USB
- IBM 468/9X
- RS-232

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC

Extended Details
