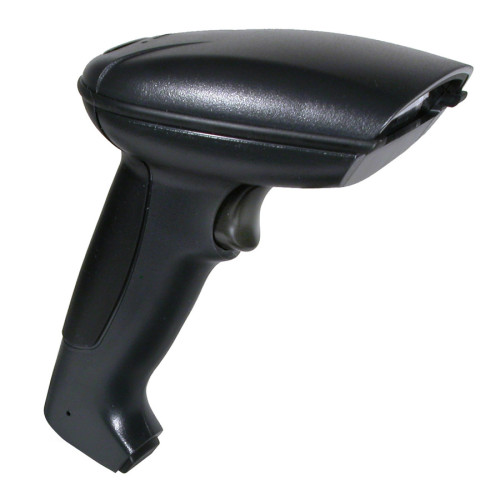

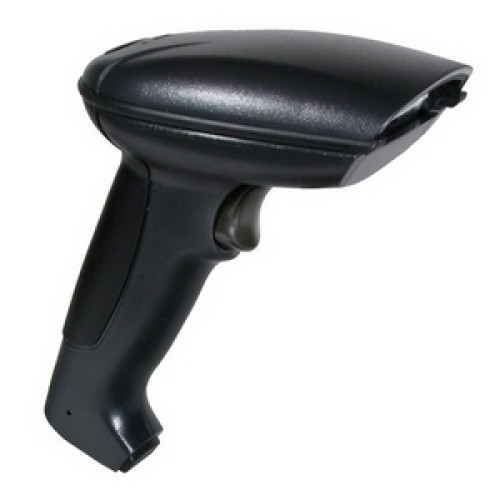

Hand Held ImageTeam 3800 Barcode Scanner
Part #: 3800LR-12USBKITE | SKU: 21853

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held ImageTeam 3800 Barcode Scanner

Part Details: LR High Performance Linear Imager (USB Interface, Holder, USB Cable, User Guide and)

Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 49 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 3800
Product Condition	No
Scanner Capability	1D
Scanner Type	No
Specialty Encoding	None

ImageTeam 3800 Specs (pdf)

Technical Information

Scan Pattern: Linear
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Linear
Barcode Symbology Supported:
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- PDF 417
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- PDF 417
Maximum Scan Resolution: 3 mil
Depth of Field: 1" - 8"@ - 100% UPC

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 3800LR
Product Name: 3800LR Barcode Reader

Physical Characteristics

Height: 6"
Width: 3.1"
Depth: 5.3"
Color: Beige
Weight (Approximate): 3.60 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- 3800LR Barcode Reader
- Holder
- USB Coiled Cable
- User Documentation
- 3800LR Barcode Reader
- Holder
- USB Coiled Cable
- User Documentation
Certifications & Standards:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED Safety: Class 1
- UL
- cUL
- TÜV
- RoHS
Platform Supported:
- PC
- Mac
Additional Information:
- Supported Interfaces:
- Wand Emulation
- Serial
- HHLC Non-decoded Laser Compatible
- USB

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC

Extended Details
