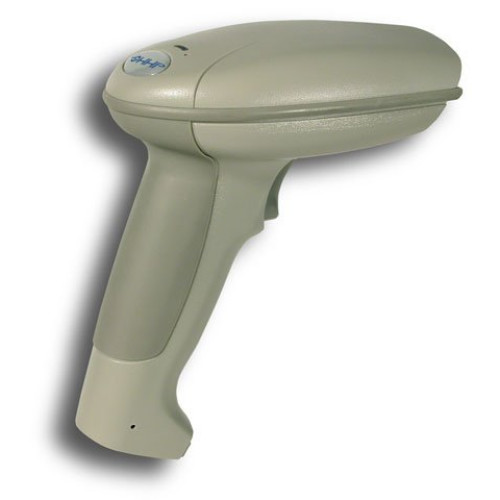

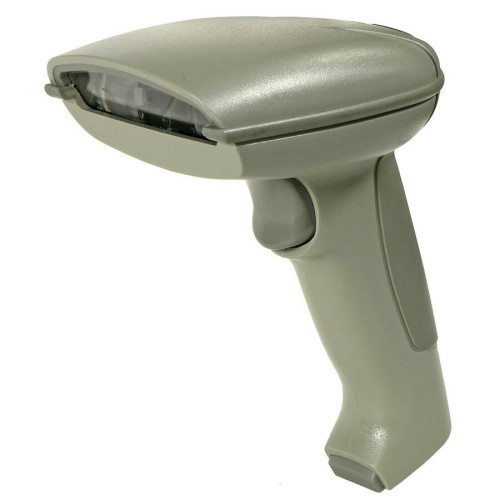

Hand Held ImageTeam 3800 Barcode Scanner
Part #: 3800LR-12CMBKIT | SKU: 8980

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held ImageTeam 3800 Barcode Scanner

Part Details: LR High Performance Linear Imager (with Holder, Combo Cable Kit and Guide)

Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 49 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	ImageTeam 3800
Product Condition	No
Scanner Capability	1D
Scanner Type	No
Specialty Encoding	None

ImageTeam 3800 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 3 mil(s)
Symbologies Supported:
- Code 2 of 5
- Code 93
- Interleaved 2 of 5
- Codabar
- Matrix 2 of 5
- Code 11
- Code 128
- UPC
- EAN/JAN
- China Post
- Code 3 of 9
- RSS
Scanner Type: Imager
Scan Rate: 270 Scans/sec
Interface Options: Keyboard Wedge
Interface Connectivity: Corded
Input Voltage: 5 V DC

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 3800LR-12CMBKIT General Purpose Linear Imager

Physical Characteristics

Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
Weight: 6.3 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- UL
- cUL listed
- TÃ

Extended Details

Recommended Accessories for Model: Hand Held ImageTeam 3800 Barcode Scanner

Honeywell Accessories Accessory
Part #: HFSTAND7E | SKU: HON21833

Flex-Stand - 10" Height - Color: Black - Compatible with 1300g

MSRP: $46.32 Price: $39.47
Hand Held ImageTeam 3800 Accessory
Part #: 42206132-01E | SKU: 24924

15 ft, Mini Din, 6-pin Male/Female, External power required, for the 3800

Price: $106.40
Honeywell Cables Accessory
Part #: 42206132-02SE | SKU: HON24927

Cable: AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight

Price: $33.95
Hand Held ImageTeam 3800 Accessory
Part #: 42204253-22E | SKU: 31716

for the 3000, 3800 and 5700, 22 feet, True RS-232, 9-Pin D Female

Price: $131.39
Hand Held ImageTeam 3800 Accessory
Part #: 42203758-01E | SKU: 22597

RS-232 cable, 9-pin Male, Power on Pin 9, for the 3800/5700

Price: $41.12
