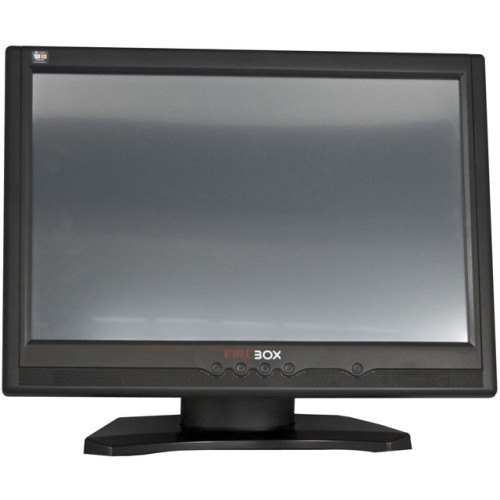

Firebox S9520 Touchscreen
Firebox Touchscreen

Firebox S9520 Touchscreen

Firebox S9520 Touchscreen

An industry first, the S9520 Series delivers an attractive, slim, wide format design with the addition of stereo speakers to interface with all multi-media applications. The S9520 Series incorporates a bright, high contrast ratio, 16: 10 19" TFT LCD with wide viewing angels to improve image quality at various viewing angles. Available in either resistive or capacitive touch sensors which interface to serial or USB touch controllers. The stability of our U-Mount base makes this touch monitor a winner no matter the application.
Discontinued - Need Assistance
See all options
S9520 Specs S9520 Specs (pdf)

LCD Panel

19" Wide Screen TFT Active Matrix LCD Display

Resolution

1440 x 900 Pixel, 16.7M Colors

Contrast Ratio

700:1

Brightness

300 cd/m2

Response  Time

8 ms

Pixel Pitch

0.2835 mm

Plug & Play

DDC 2B Compliance

OSD (On Screen Display)

AutoTune, Brightness, Contrast, Clock,
Phase, H-position, V-position, Recall

Touch Technology

5 Wire Resistive, Capacitive Technology

Touch Interface

USB, Serial

Touch Active Area (W/H)

16.072"(408.24 mm) x 10.045"(255.15 mm)

Operating Environment

0ºC-50ºC (32ºF-104ºF)
10%-80% (no condensation)

Storage Conditions

-20ºC-60ºC (-4ºF-140ºF)
10%-90% (no condensation)

Product Dimension (W/H/D) mm

18"(457.2mm) x 13"(330.2mm) x 5"(124.9mm)

Weight (Net with Base)

16.9 Lb (37.2 Kg)

Stand Style

PED-3 Cable Management Base

Mounting Option

Desktop Placement, Bolt Down, & VESA Mountable

Monitor Tilting Degree

160 Degree

Color

Black

Viewing Angle

-75º/+75º/-65º/+65º(L/R/U/D)

MTBF

50,000 Hours

PC Video Interface

Analog RGB (VGA)

Horizontal scan rate (KHz)

30 ~ 82 KHz

Vertical scan rate (Hz)

50 ~ 85 KHz

Front Control

Power On/Off with LED, Menu
AutoTune, Adjustment (+/-)

Built-in Speaker

2.5 W

Electrical Power

Adapter Input 100-240 VAC,50-60HZ 1.7A
Adapter Output 12 VDC, 3.33A (C+)

Power Consumption

35W (Max)

Certification

FCC, CE, VCCI, MIC
Extended Details
Refine Your Options
  1. Firebox S9520 Touchscreen

    Firebox S9520 Touchscreen
    Part #: U09-M190W-SB-BSE | SKU: 65275

    S9520, NO TCH, SPKERS, 19IN, BLK, UMNT BSE INCLD
  2. Firebox S9520 Touchscreen

    Firebox S9520 Touchscreen
    Part #: U09-T190WSR-SB | SKU: 65285

    UnyTouch Sting Ray U09-T190WSR-SB Touchscreen LCD Monitor - 19 - 5-wire Resistive - 1440 x 900 - Black
  3. Firebox S9520 Touchscreen

    Firebox S9520 Touchscreen
    Part #: U09-T190WUR-SB | SKU: 65286

    UnyTouch Sting Ray U09-T190WUR-SB Touchscreen LCD Monitor - 19 - 5-wire Resistive - 1440 x 900 - Black

3 Item(s)
