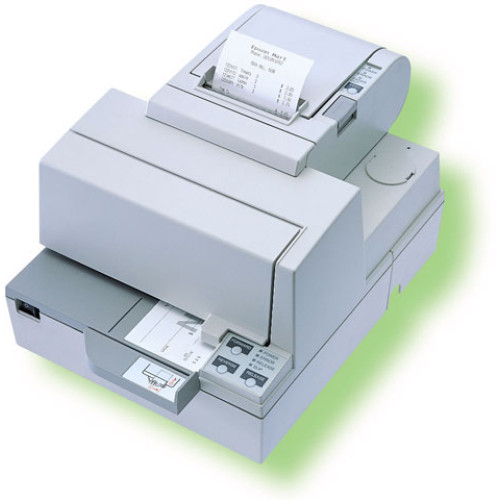

Epson TM-H5000II Receipt Printer

2.5 Station Printer

TM-H5000II Print method

9-pin, serial impact dot matrix

Font

7x9 / 5x9

Column capacity (columns)

Journal or Receipt: 40/30 Slip: 88/66

Character size (mm)

1.3(W) x 3.1(H)/1.6(W) x 3.1(H)

Print Font

Character set

95 Alphanumeric 32 International 128 x 8 Graphic

Characters Per Inch

16.7 cpi / 12.5 cpi

Interface Options

RS-232C / Centronics (on plan)

Data buffer

2K bytes or 32 bytes

Print speed

311 / 233 cps (lps: Lines Per Second)

Paper

Dimensions (mm)

Receipt: Roll paper 69.5 + 0.5(W) x Ø83

Slip: 70(W) x 70(L) to 210(W) x 297(L)

Thickness (mm)

Receipt: 0.06 to 0.09 Slip: 0.09 to 0.36

Copy capacity

One original and four copies (for Slip)

Ink ribbon

ERC-31 (purple, black)

Power

24 VDC +- 10%

TM-H5000II Power consumption

Approx. 43 W

D.K.D. function

2 drive

Reliability

Mechanism (MCBF)

5 x 10⁶ lines

Head (Life)

150 x 10⁶ characters

Overall dimensions

251(W) x 298(D) x 193.7(H) mm

Weight (Approx.)

5.6kg

EMI standard

VCCI #1, FCC class A, CE marking

Power supply

PS-150

TM-H5000II Safety standard

UL / C-UL / TUV

Options

Journal lock MICR device
