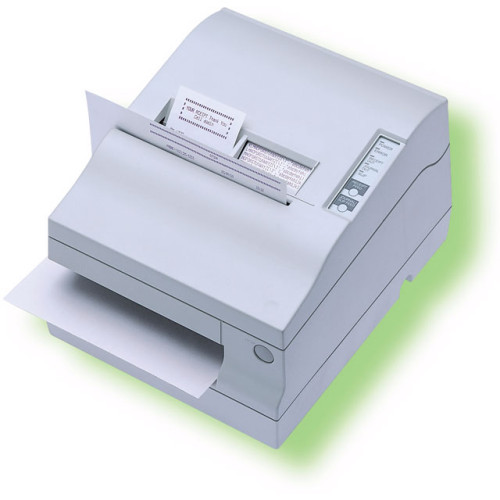

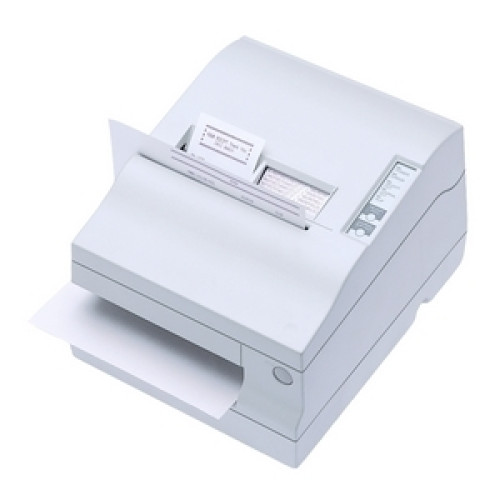

Epson TM-U950 Receipt Printer Epson TM-U950 Receipt Printer
Epson Receipt Printer

Epson TM-U950 Receipt Printer
Part #: C151994 | SKU: EPS333936

The TM-U950 is a 2.5 station printer highly suitable for POS applications with its 40 columns of receipt-journal printing per station and 86 columns of slip. This printer's user friendly features and compact design add to its flexibility. Featuring optional check printing and endorsement capabilities the TM-U950 prints one original and four copies for added convenience.

Epson TM-U950 Receipt Printer

Part Details: Epson TM-U950 Multistation Printer - Dot Matrix - Serial - MICR, Journal Lock
Need a different version of the Epson TM-U950 Receipt Printer? View all 12 configurations

Additional Information

Manufacturer Epson
Model Name TM-U950
Product Condition No
Epson TM-U950 Specs Epson TM-U950 Specs (pdf)

Technical Information

  • Interfaces: 1 x Serial
  • Data Buffer: 2 KB
  • Print Speed:
    • 311cps
    • 311 cps
  • Column Capacity:
    • Receipt 30/40
    • Slip 66/88
  • Print Method: Impact
  • Print Head Type: 9 Pin Dot Matrix
  • Printer Language: ESC POS
  • Input Voltage: 24 V DC
  • Power Supply: External Included
  • Reliability:
    • 180000 Hour(s) MTBF
    • 18000000 lines MCBF
  • Paper Dimension:
    • Slip 2.76 to 11.69 x 2.76 to 8.27 "
    • Receipt 2.73 " x 3.27"
  • Maximum Number of Columns: 88
  • Features:
    • MICR
    • Journal Lock
  • Print Technology: Dot Matrix
  • Number of Pins: 9-pin

General Information

  • Manufacturer:
  • Product Name:
    • TM-U950 Multifunction Printer
    • TM-U950 Multistation Printer
  • Product Type: Multistation Printer
  • Brand Name: Epson
  • Product Model: TM-U950

Physical Characteristics

  • Color:
    • White
    • White
  • Dimensions:
    • 7.7" (196mm) x 9.9" (251mm) x 11.7" (297mm)
    • 7.7" (196mm) x 9.9" (251mm) x x 11.7" (297mm)
  • Weight: 12.3 lb (5.58 kg)
  • Height: 7.7"
  • Width: 9.9"
  • Depth: 11.7"
  • Weight (Approximate): 12.30 lb

Included Features

  • Included Features:
    • MICR
    • Journal Lock

Interfaces/Ports

  • Interfaces/Ports: 1 x Serial

Other

  • Package Contents:
    • TM-U950 Multifunction Printer
    • Power Supply (PS-180-343)
    • Inked Ribbon: ERC-31 (purple, black)
    • Thermal Paper Roll
    • TM-U950 Multifunction Printer
    • Power Supply (PS-180-343)
    • Inked Ribbon: ERC-31 (purple, black)
    • Thermal Paper Roll
    • TM-U950 Multifunction Printer
    • Power Supply (PS-180-343)
    • Inked Ribbon: ERC-31 (purple, black)
    • Thermal Paper Roll
  • Certifications & Standards:
    • EMI Standards:
    • VCCI class A
    • FCC class A
    • CE
    • Safety Standards:
    • UL
    • CSA

Agency Approvals

  • Agency Approvals:
    • VCCI class A
    • FCC class A
    • CE
    • UL
    • CSA

Media Types & Handling

  • Media Type: Receipt
  • Media Size: 2.76" x 11.69" - Slip
  • Maximum Roll Diameter: 3.27"

Memory

  • Buffer: 2 KB

Fonts & Emulation

  • Language Emulation: ESC/POS

Power Description

  • Input Voltage: 24 V DC

Reliability

  • MTBF: 180000 Hour
Extended Details

Recommended Accessories for Model: Epson TM-U950 Receipt Printer

  • Epson Accessories Accessory
    Part #: CEPS-USBG | SKU: EPS24807

    Cable - USBG A to B Cable - 10 Foot - Dark Grey
    Price: $20.67

  • Epson Accessories Ribbon
    Part #: S015329 | SKU: EPS38276

    Printer Ribbon - Epson FX-890 - Black Ribbon for Impact
    Price: $18.68

  • Epson Accessories Ribbon
    Part #: S015335 | SKU: EPS38277

    Printer Ribbon - Epson FX-2190/LQ2090 - Black Ribbon
    Price: $30.88

  • Epson Accessories Accessory
    Part #: CEPS-RJ4525 | SKU: EPS27400

    Cable - Serial Cable - 30 Inches - RJ45-DB
    Price: $21.81

  • Epson Accessories Accessory
    Part #: EPSON-003 | SKU: EPS28233

    Cable - Null Modem Serial Cable - 10 Foot - Beige - DB-9 Female to DB-25 Male
    Price: $20.67
View All Options

Recommended Receiptpapers for Model: Epson TM-U950 Receipt Printer

  • AirTrack Receipt Paper
    Part #: RF2.75 | SKU: AIR230116

    Receipt Paper, 2.75" width x 190' length, single-ply impact bond paper. Single roll. Minimum order quantity: 50 Rolls.
View All Options

Recommended Ribbons for Model: Epson TM-U950 Receipt Printer

  • Epson Ribbons Ribbon
    Part #: ERC-31B-R | SKU: EPS101280

    Ribbon - Epson TM-U925 - TM-U950 - and TM-U590 - Single Ribbon - Black
    Price: $16.22

  • Epson Ribbons Ribbon
    Part #: ERC-31B | SKU: EPS5073

    Ribbons - Epson TM-U925/TM-U950/TM-U590 - Case of 10 - Black

  • Epson Ribbons Receipt Ribbon
    Part #: ERC-31P | SKU: EPS5074

    Purple Ribbon for TM-U925, TM-U950, and TM-U590, Single Ribbon. Epson recommends Black ribbon to replace this product.

  • Epson Ribbons Receipt Ribbon
    Part #: ERC-31P1PK-VRD | SKU: EPS66416

    Purple Ribbon (Single) for the U950, U925 and H5000
