Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen Elo 1723L Touchscreen
Elo Touchscreen

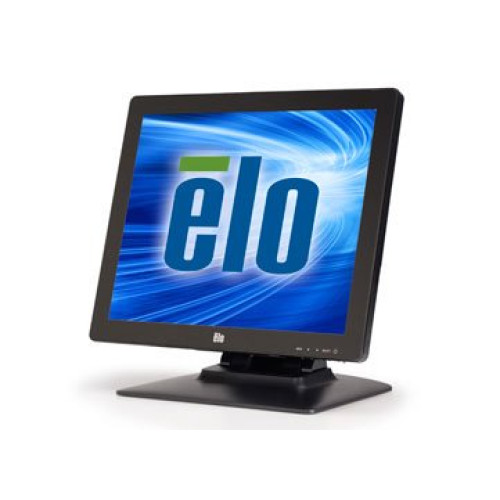

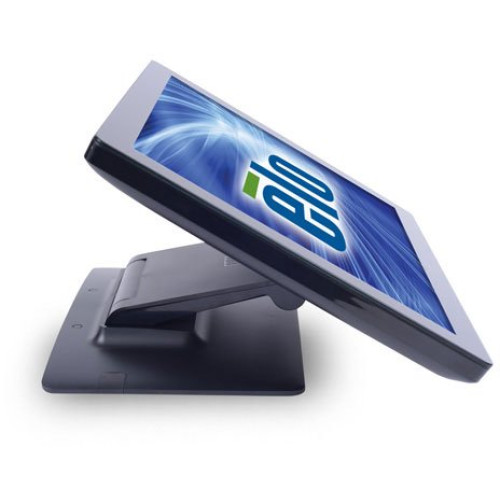

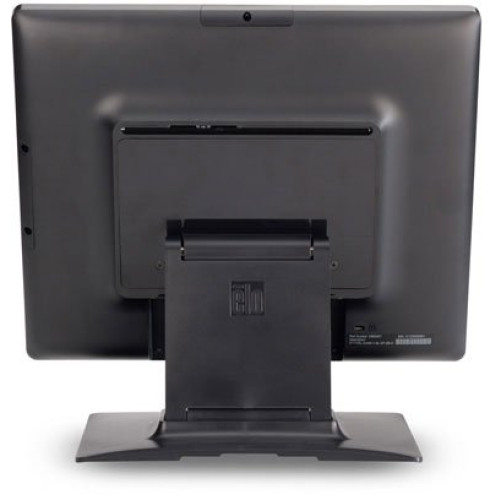

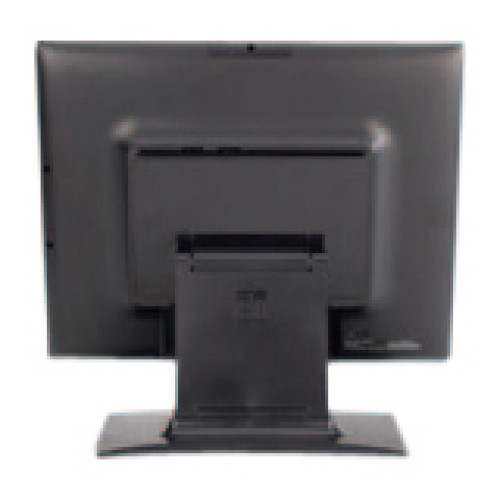

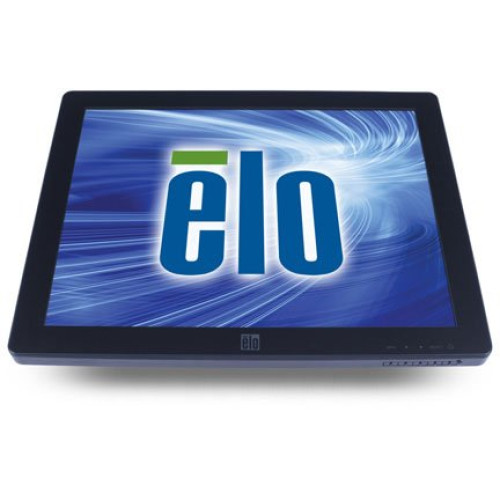

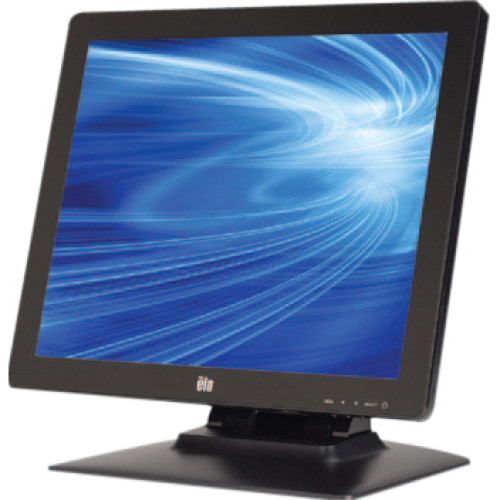

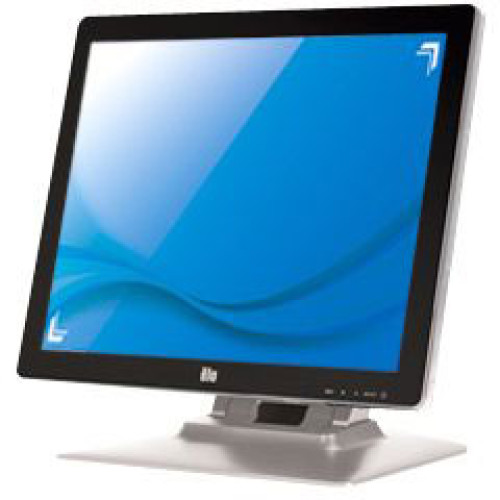

Elo 1723L Touchscreen
Part #: E924166 | SKU: ELO221727

The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket. The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.

Elo 1723L Touchscreen

Part Details: Elo 1723L 17" LCD Touchscreen Monitor - 5:4 - 30 ms - 17" Class - IntelliTouch Surface WaveMulti-touch Screen - 1280 x 1024 - XGA - Adjustable Display Angle - 16.7 Million Colors - 800:1 - 250 Nit - Speakers - DVI - USB - VGA - White - 3 Year
Need a different version of the Elo 1723L Touchscreen? View all 4 configurations

Additional Information

Manufacturer Elo
Model Name 1723L
Product Condition No
Elo 1723L Specs Elo 1723L Specs (pdf)

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Adjustable Display Angle: Yes
  • Adjustable Display Height: Yes
  • Screen Mode: XGA
  • Features:
    • Security Lock
    • Water Proof
    • Cable Management
  • Mount Type:
    • Desk Mountable
    • Wall Mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 30 ms
  • Screen Surface:
    • Anti-glare
    • Anti-scratch

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1723L
  • Product Name: 1723L Multifunction 17-Inch Desktop Touchmonitor

Physical Characteristics

  • Weight with Stand (Approximate): 11.49 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 8.23"
  • Width with Stand: 15.39"
  • Depth with Stand: 14.17"
  • Color: White
  • Weight (Approximate): 7.85 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Certifications & Standards:
    • UL/cUL
    • FCC-A
    • Semko
    • CE
    • VCCI
    • C-Tick
    • UL/cUL
    • FCC-A
    • Semko
    • CE
    • VCCI
    • C-Tick
  • Platform Supported: PC

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Power Description

  • Operating Power Consumption: 22 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • Touchscreen Type: IntelliTouch Surface Wave

Warranty

  • Limited Warranty: 3 Year

Audio

  • Speakers: Yes

Built-in Devices

  • Built-in Devices: Speaker
Extended Details
