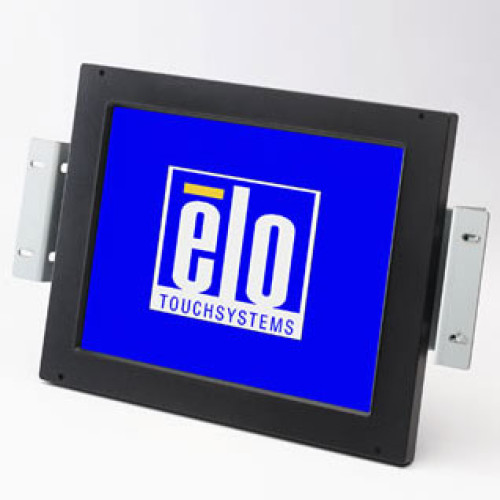

Elo Entuitive 1247L Touchscreen
Part #: E655204 | SKU: ELO21799

Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.

Elo Entuitive 1247L Touchscreen

Part Details: 2999 Series Elo Entuitive 1247L 12 Inch LCD Rear Mount Touchmonitor (IntelliTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment) - Color: Black

Need a different version of the Elo Entuitive 1247L Touchscreen? View all 3 configurations

Additional Information

Color	No
Display Type	LCD
Form Factor	No
Interface	RS-232 Serial, USB
Manufacturer	Elo
Model Name	Entuitive 1247L
Product Condition	No
Screen Size	12
Touch Technology	No

Elo Entuitive 1247L Specs (pdf)

General Information

Product Type: LCD Touchscreen Monitor
Product Series: 3000
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 1247L
Product Name: 3000 Series 1247L Touch Screen Monitor

Technical Information

Screen Mode: SVGA
Mount Type: Desk Mountable
Screen Size: 12"
Aspect Ratio: 4:3
Response Time: 40 ms
Screen Surface: Anti-glare

Physical Characteristics

Height: 9.5"
Width: 11.9"
Depth: 2.4"
Color: Black
Weight (Approximate): 8.80 lb

Interfaces/Ports

USB: Yes

Video

Standard Refresh Rate: 75 Hz
Brightness: 320 Nit
Color Supported: 262,144 (6-bit)
Maximum Resolution: 800 x 600
Contrast Ratio: 500:1

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Platform Supported: Mac

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Surface Acoustic Wave

Power Description

Input Voltage: 220 V AC

Warranty

Limited Warranty: 3 Year
