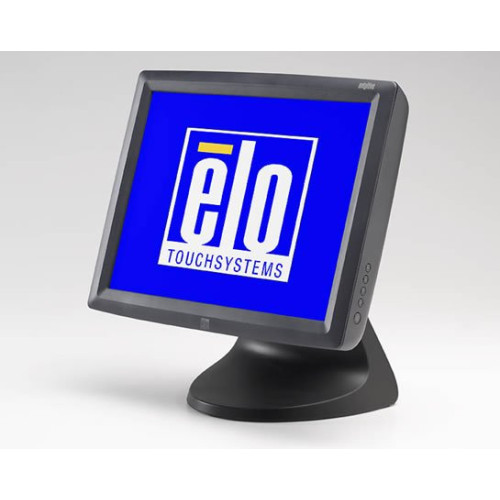

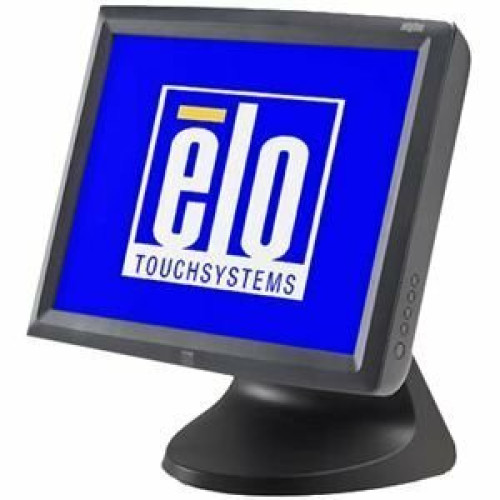

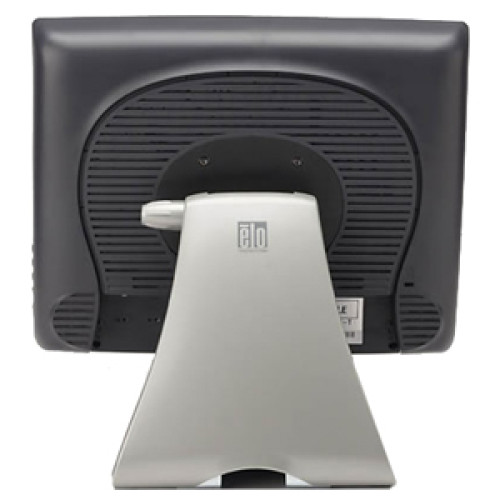

Elo 1528L Medical Touchscreen
Part #: E535675 | SKU: ELO28186

The 1528L Medical from Elo is the cost-effective LCD touchmonitor for patient monitoring and critical care. The 15" 1528L Medical LCD medical desktop touchmonitor is available with the proven popularity of AccuTouch five-wire resistive touch technology, plus serial and USB touch interfaces. The monitor is factory sealed against dust, dirt, and liquid splashes. The 1528L Medical can be used in a wide variety of environments because it registers input from a finger, gloved hand or soft stylus with a fast and accurate response.

Elo 1528L Medical Touchscreen

Part Details: Elo 5000 Series 1528L Medical Desktop Touchscreen LCD Monitor - 15" - 5-wire Resistive - 1024 x 768 - 4:3 - Dark Gray

Need a different version of the Elo 1528L Medical Touchscreen? View all 9 configurations

Additional Information

Color	No
Display Type	LCD
Form Factor	No
Interface	RS-232 Serial, USB
Manufacturer	Elo
Model Name	1528L Medical
Product Condition	No
Screen Size	15
Touch Technology	No

Elo 1528L Medical Specs (pdf)

General Information

Product Type: LCD Touchscreen Monitor
Product Series: 5000
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 1528L
Product Name: 5000 Series 1528L Medical Desktop Touchscreen LCD Monitor

Technical Information

Screen Mode: XGA
Screen Size: 15"
Aspect Ratio: 4:3
Response Time: 8 ms
Screen Surface: Anti-glare

Physical Characteristics

Height with Stand: 13.80"
Width with Stand: 13.99"
Depth with Stand: 8"
Color: Dark Gray
Weight (Approximate): 15.30 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes

Video

Standard Refresh Rate: 75 Hz
Brightness: 350 Nit
Color Supported: 16.2 Million Colors
Maximum Resolution: 1024 x 768
Contrast Ratio: 400:1

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: 5-wire Resistive
