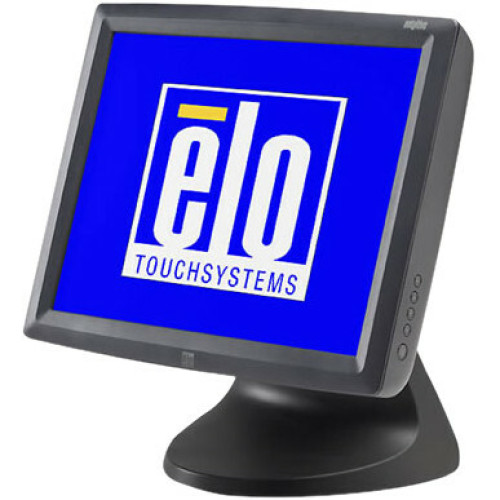

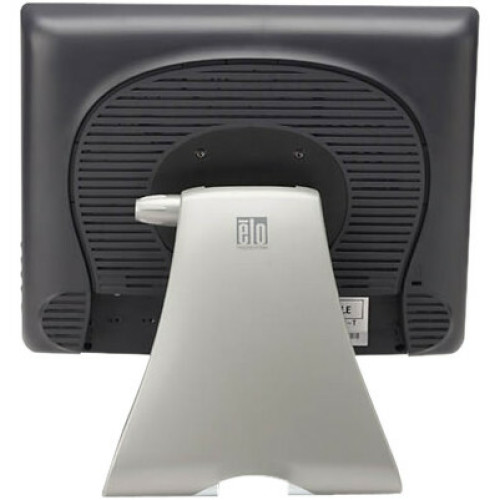

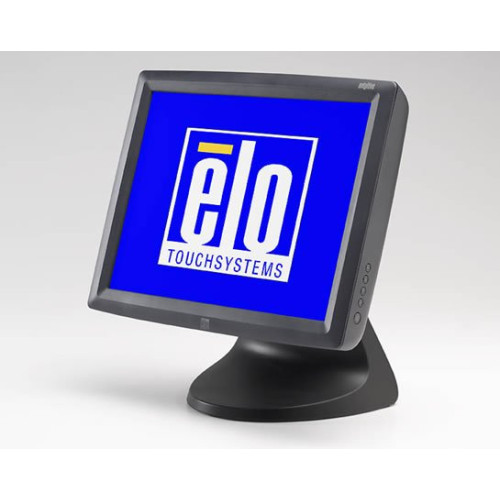

Elo 1528L Medical Touchscreen
Part #: E491199 | SKU: ELO207652

The 1528L Medical from Elo is the cost-effective LCD touchmonitor for patient monitoring and critical care. The 15" 1528L Medical LCD medical desktop touchmonitor is available with the proven popularity of AccuTouch five-wire resistive touch technology, plus serial and USB touch interfaces. The monitor is factory sealed against dust, dirt, and liquid splashes. The 1528L Medical can be used in a wide variety of environments because it registers input from a finger, gloved hand or soft stylus with a fast and accurate response.

Elo 1528L Medical Touchscreen

Part Details: Elo 1528L 15" LCD Touchscreen Monitor - 4:3 - 8 ms - 15" Class - IntelliTouch Surface Wave - 1024 x 768 - XGA - Adjustable Display Angle - 16.2 Million Colors - 400:1 - 350 Nit - Speakers - DVI - USB - VGA - Dark Gray - RoHS - 3 Year

Need a different version of the Elo 1528L Medical Touchscreen? View all 9 configurations

Additional Information

Manufacturer	Elo
Model Name	1528L Medical
Product Condition	No

Elo 1528L Medical Specs (pdf)

Technical Information

Horizontal Viewing Angle: 150°
Vertical Viewing Angle: 125°
Adjustable Display Angle: Yes
Screen Mode: XGA
Features: Security Lock
Mount Type: Desk Mountable
Screen Size: 15"
Aspect Ratio: 4:3
Response Time: 8 ms
Screen Surface: Anti-glare

General Information

Product Type: LCD Touchscreen Monitor
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 1528L
Product Name: 1528L 15-Inch Desktop Touchmonitor For Medical And Healthcare Settings

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Height with Stand: 13.78"
Width with Stand: 13.98"
Depth with Stand: 7.99"
Color: Dark Gray
Weight (Approximate): 10.58 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes
Serial Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- FCC Class B
- IC Class B
- C-Tick Class B
- UL/cUL Medical UL 60601-1(formerly 2601-1)/C22.2 No. 601.1 (Drip-proof IPX1, AccuTouch only)
- EMC
- EN/IEC 60601-1-2
- FCC Class B
- IC Class B
- C-Tick Class B
- UL/cUL Medical UL 60601-1(formerly 2601-1)/C22.2 No. 601.1 (Drip-proof IPX1, AccuTouch only)
- EMC
- EN/IEC 60601-1-2
Package Contents:
- 1528L 15-Inch Desktop Touchmonitor For Medical And Healthcare Settings
- Detachable Touch Cable
- Video Cables
- 1528L 15-Inch Desktop Touchmonitor For Medical And Healthcare Settings
- Detachable Touch Cable
- Video Cables
Platform Supported:
- PC
- Mac

Video

Standard Refresh Rate: 60 Hz
Brightness: 350 Nit
Color Supported: 16.2 Million Colors
Maximum Resolution: 1024 x 768
Contrast Ratio: 400:1

Power Description

Operating Power Consumption: 48 W
Input Voltage:
- 110 V AC
- 220 V AC

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: IntelliTouch Surface Wave

Warranty

Limited Warranty: 3 Year

Audio

Speakers: Yes

Built-in Devices

Built-in Devices: Speaker

Extended Details
