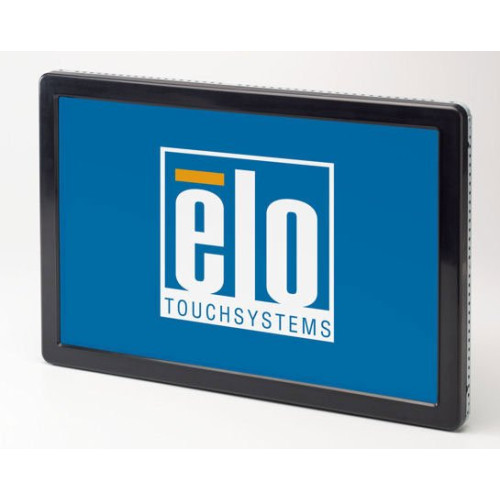

Elo 2239L Touchscreen
Part #: E230376 | SKU: ELO150248

The ELO 2239L features a brilliant wide-viewing-angle LCD panel to instantly grab and hold the user's attention, whether they are checking out retail goods with a self-service kiosk or playing games in a casino or arcade. Because the enclosure is controlled by Elo's specifications and tooling, Elo's open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing.

Elo 2239L Touchscreen

Part Details: Elo 2239L 22" Open-frame LCD Touchscreen Monitor - 16:10 - 5 ms - 22" Class - Surface Acoustic Wave - 1680 x 1050 - WSXGA+ - 16.7 Million Colors - 1,000:1 - 300 Nit - DVI - USB - VGA - Black - 3 Year

Need a different version of the Elo 2239L Touchscreen? View all 4 configurations

Additional Information

Manufacturer	Elo
Model Name	2239L
Product Condition	No

Elo 2239L Specs (pdf)

Technical Information

Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Screen Mode: WSXGA+
Screen Size: 22"
Aspect Ratio: 16:10
Response Time: 5 ms

General Information

Product Type: Open-frame LCD Touchscreen Monitor
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 2239L
Product Name: 2239L Open-frame Touchscreen LCD Monitor

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height with Stand: 13.90"
Width with Stand: 20.90"
Depth with Stand: 3.10"
Color: Black
Weight (Approximate): 18.70 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- China RoHS
- WEEE

Video

Standard Refresh Rate: 75 Hz
Brightness: 300 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1680 x 1050
Contrast Ratio: 1,000:1

Power Description

Operating Power Consumption: 50 W
Input Voltage:
- 110 V AC
- 220 V AC

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Surface Acoustic Wave

Warranty

Limited Warranty: 3 Year
