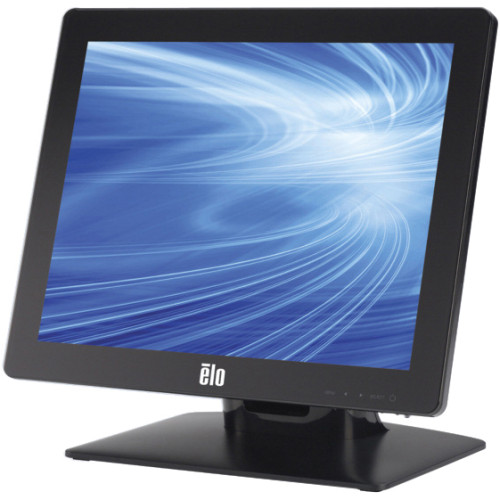

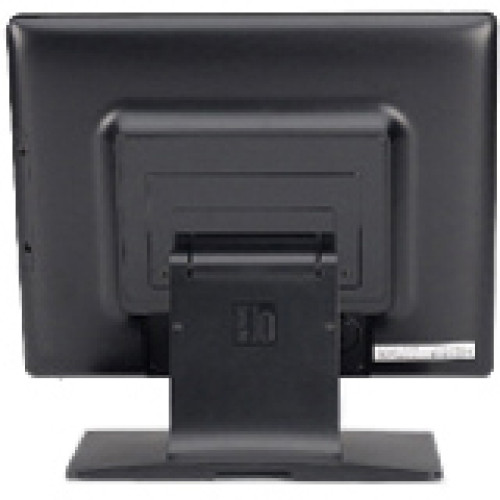

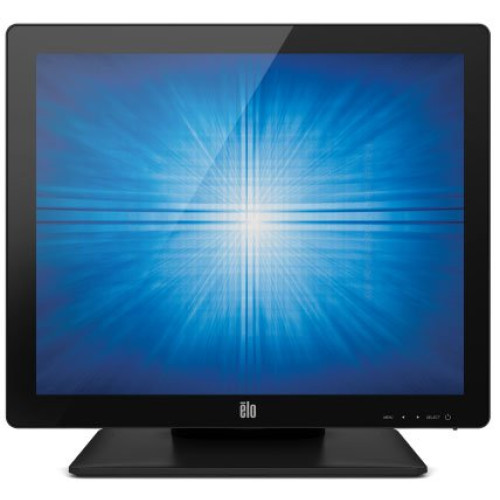

Elo 1717L Touchscreen
Part #: E179069 | SKU: ELO263633

Introducing the Elo 1717L standard format touchscreen monitor that is built to withstand the rigors of continuous public use with its rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel. The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.

Elo 1717L Touchscreen

Part Details: 17" Touchscreen Monitor - Elo 1717L - Desktop LCD - 5:4 Aspect Ratio - IntelliTouch ZB Single-Touch - 1280 x 1024 SXGA - 16.7 million Colors - 225 nits Brightness (typical) - LED Backlight - 1000:1 Contrast Ratio (typical) - VGA Video Interface - RS232 Serial/USB Touch Controller Interface - Clear - Zero-Bezel - Stand - Black - 3-Year Warranty - Adjustable Display Angle - RoHS - China RoHS - WEEE - Worldwide. Box Includes Quick Install Guide - VGA Cable (DB-15 Male to DB-15 Male) - USB Cable (USB Type A Plug to USB Type B Plug) - Power Cable - IEC 60320-C5 to NA/EU Plug - Stand Base Assembly (Part# E904304) - Filler Plate (Part# E000405).
MSRP: $930.00 Price: $907.32

Additional Information

Manufacturer Elo
Model Name 1717L
Product Condition No

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Backlight Technology: LED
  • Adjustable Display Angle: Yes
  • Screen Mode: SXGA
  • Features: Security Lock
  • Mount Type: Desk Mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 30 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1717L
  • Product Name: 1717L Rev A Multifunction 17-inch Desktop Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 14.17"
  • Width with Stand: 15.43"
  • Depth with Stand: 7.52"
  • Color: Black
  • Weight (Approximate): 12.10 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
    • China RoHS
  • Certifications & Standards:
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
  • Package Contents:
    • 1717L Rev A Multifunction 17-inch Desktop Touchmonitor
    • Power Cable
    • Touch/Video Cables
    • 1717L Rev A Multifunction 17-inch Desktop Touchmonitor
    • Power Cable
    • Touch/Video Cables

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Power Description

  • Operating Power Consumption: 36 W

Warranty

  • Limited Warranty: 3 Year
Extended Details
