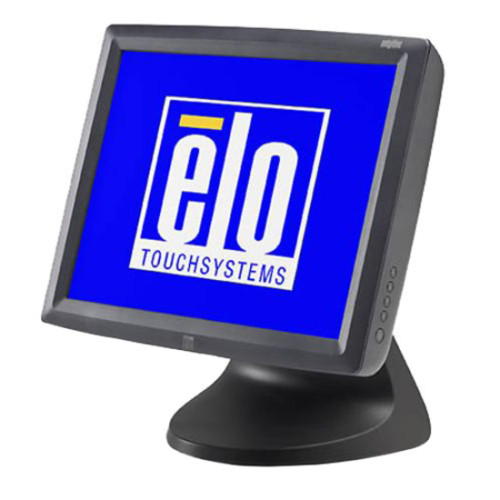

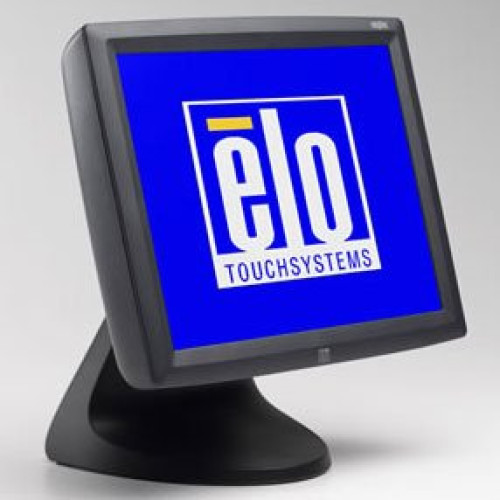

Elo Entuitive 1529L Touchscreen
Part #: E101984 | SKU: ELO20803

Elo's 1529L touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions. The silent, fanless 1529L integrates an all-in-one touchcomputer within the footprint of a 15 Inch LCD monitor. The retail-rugged 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short stable tilt base that is removable or reversible for wall mounting, and a choice of Elo touch technology as well as color. The Microsoft Windows 2000 and XP Professional versions of the 1529L touchcomputer include a hard drive; the Windows CE.NET and Windows XP Embedded versions have solid-state components with no moving parts. Options include a magnetic stripe reader (MSR) and rear-facing customer display. Elo's 1529L touchcomputer offers a wide range of connectivity, including USB and legacy serial ports. Applications for the new all-in-one touchcomputer include loyalty systems, kiosk information systems, POS, casino management, cash systems, and Internet access points such as those for Web surfing and hotel reservations.

Elo Entuitive 1529L Touchscreen

Part Details: 3000 Series 1529L Multifunction 15 Inch LCD Desktop Touchmonitor (IntelliTouch Touch Technology, Dual Serial/USB Touch Interface, Tall Stand and Antiglare Surface Treatment)- Color: Grey

Need a different version of the Elo Entuitive 1529L Touchscreen? View all 79 configurations

Additional Information

Color	No
Display Type	LCD
Form Factor	No
Interface	RS-232 Serial, USB
Manufacturer	Elo
Model Name	Entuitive 1529L
Product Condition	No
Screen Size	15
Touch Technology	No

Elo Entuitive 1529L Specs (pdf)

General Information

Product Type: LCD Touchscreen Monitor
Product Series: 3000
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 1529L
Product Name: 3000 Series 1529L Touch Screen Monitor

Technical Information

Screen Mode: XGA
Mount Type: Desk Mountable
Screen Size: 15"
Aspect Ratio: 4:3
Response Time: 12 ms

Physical Characteristics

Height with Stand: 11.27"
Width with Stand: 13.99"
Depth with Stand: 10.44"
Color: Dark Gray
Weight (Approximate): 14.44 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes

Other

Package Contents:
- 1529L Multifunction Desktop Touchscreen LCD Monitor
- North American AC power cables
- All appropriate detachable Touch/Video/Accessory cables
- 1529L Multifunction Desktop Touchscreen LCD Monitor
- North American AC power cables
- All appropriate detachable Touch/Video/Accessory cables
Additional Information:
- Options:
- USB Customer Display (2x20 VFD)
- USB Fingerprint Reader
- USB Magnetic Stripe Reader
- USB Barcode Scanner (single-line or omni-directional)
- Two external USB ports

Video

Standard Refresh Rate: 75 Hz
Brightness: 322 Nit
Color Supported: 16.2 Million Colors
Maximum Resolution: 1024 x 768
Contrast Ratio: 400:1

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Surface Acoustic Wave

Power Description

Input Voltage: 220 V AC

Warranty

Limited Warranty: 3 Year
