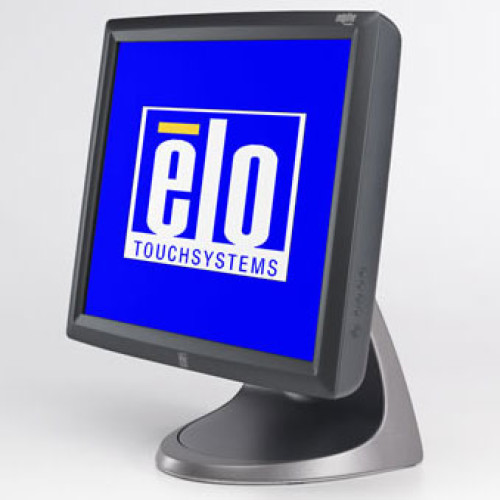

Elo Entuitive 1926L Touchscreen

The Elo Entuitive 1926L is a medical-grade touchmonitor that is safe from drips and spills, making it ideal for hospitals and other medical facilities. The Entuitive 1926L's sealed construction allows the use of hospital-grade disinfectants and other cleaners which make it perfect for patient rooms, operating and emergency rooms and anywhere contamination must be prevented. The Entuitive 1926L features multiple video inputs, a stable tilt base and USB connections for peripherals.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

19" Medical LCD Desktop Touchmonitor (5000 Series)

Features

High quality panel with 170°x170° viewing angle
Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
Two external USB ports for peripherals
"Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
Cables hidden from user's view
Mounting holes on base bottom for tabletop security
Base removable or reversible for wall mounting, plus VESA mounting option
Built-in speakers located in display head
Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface Wave Technology and serial or USB interface
Sealed touchscreen
Controls on the side rather than the front, plus lockout function for public use
Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
Long-lasting product cycle
Worldwide agency approvals

Specifications

Model
Series	5000
Availability	Worldwide
Case/Bezel color	Dark gray; special logo application and painting available at additional cost
Display	Size: 19" diagonal Type: Active matrix TFT LCD Aspect ratio: 5 x 4
Useful screen area	Horizontal: 14.8" (376 mm) Vertical: 11.9" (301 mm)
Monitor dimensions	Width: 17.2" (436 mm) Height (inc. base): 18.0" (457 mm) Depth (inc. base): 9.49" (241 mm)
Optimal (native) resolution	1280 x 1024 at 60, 70 or 75 Hz
Other supported resolutions	1152 x 864 at 75 Hz 1024 x 768 at 60, 65, 70, or 75 Hz 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72, or 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66, 72, or 75 Hz
Colors	16.7 million (8 bit)
Brightness LCD panel	300 cd/m² (typical)
Brightness LCD panel with touchscreen	AccuTouch: 246 cd/m² (typical) IntelliTouch: 276 cd/m² (typical)
Response time	25 msec (typical)
Viewing angle (typical, from center)	Horizontal (left/right): ±85° or 170° total Vertical (up/down): ±85° or 170° total
Contrast ratio	700:1 (typical)
Input video format	Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
Input video signal connector	DVI-I, RCA, S-Video on monitor; DVI-D, HD-15, S-Video, RCA plugs via cables
Input syncs	Separate H & V, composite sync, sync-on-green
Input audio	Computer audio on 3.5mm stereo mini; audio for video on dual RCA jacks
Input frequency	Horizontal: 31–80 kHz Vertical: 56–75 Hz
Input data	Serial touch or USB 1.1 touch (with two external USB ports for peripherals)
Power supply	Type: external (inlet connector: IEC60320-C13) Input (line) voltage: 100–240 V, 50/60 Hz
Power dissipation	40 W (typical)
Temperature	Operating: 0^oC to 40^oC Storage: -20^oC to 60^oC
Humidity	Operating: 20%–80% Storage: 5%–90% noncondensing
Weight (approx.)	Actual: 21.5 lb (9.78 kg) Shipping: 30.0 lb (13.6 kg)
Warranty	Monitor: 3 years
Agency approvals	UL/cUL Classified 60601-1, CE, FCC/IC/C-Tick Class B, IPX1 (AccuTouch only)
Speakers	Two built-in, rear-facing 2W speakers in display head
On-screen display (OSD)	Digital Locking OSD and/or power
User's controls	OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select, language (English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, Japanese)
Mounting options	100 mm M4 VESA mount 100 mm M5 threaded holes on base bottom for table top security Removable base Reversible stand for wall mounting Stand rotates from -5^o (from vertical) to 90^o (horizontal) Locking OSD and/or power Locking tilt control

Extended Details

Refine Your Options

Elo Entuitive 1926L Touchscreen
Part #: 107650-000 | SKU: ELO15381

5000 Series Elo Entuitive 1926L 19 Inch Medical LCD Desktop Touchmonitor (AccuTouch Touch Technology, USB Touch Interface and Antiglare Surface Treatment)
Elo Entuitive 1926L Touchscreen
Part #: F72589-000 | SKU: ELO15382

5000 Series Elo Entuitive 1926L 19 Inch Medical LCD Desktop Touchmonitor (IntelliTouch Touch Technology, USB Touch Interface and Antiglare Surface Treatment) - Color: Dark Gray
Elo Entuitive 1926L Touchscreen
Part #: F49784-000 | SKU: ELO15383

5000 Series Elo Entuitive 1926L 19 Inch Medical LCD Desktop Touchmonitor (AccuTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment)
Elo Entuitive 1926L Touchscreen
Part #: E298721 | SKU: ELO28177

Entuitive 1926L, 19" Medical LCD Desktop Touchmonitor, AccuTouch (resistive) Touch Technology, Serial interface, Color: Dark gray
Elo Entuitive 1926L Touchscreen
Part #: E197815 | SKU: ELO31626

Entuitive 1926L, 1926L, 19"LCD, AccuTouch, USB DK.GRAY, DESKTOP, 5000 Serial
Elo Entuitive 1926L Touchscreen
Part #: E343474 | SKU: ELO31627

Entuitive 1926L, 1926L, 19"LCD, INTELLITOUCH, SERIAL, Dark gray, MEDICAL
