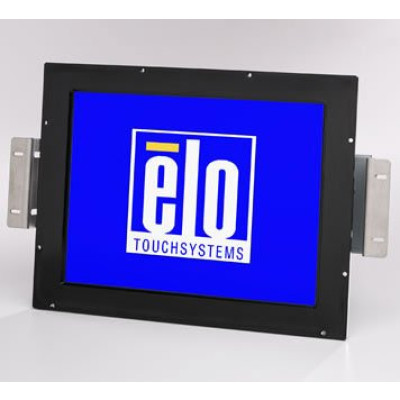

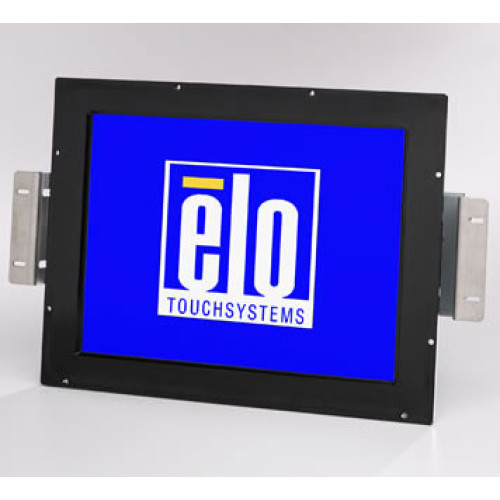

Elo Entuitive 1547L Touchscreen

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications, enabling future panel improvements without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options. The 1547L is available with Elo's projected capacitive technology, which enables touches to be sensed through a protective layer in front of the display. The DirectTouch model includes a 7.8 mm sensor with tempered glass outer layer and a minibezel with watertight seal. ThruTouch touchmonitors include only the touch sensor layer and are designed to work behind customer-supplied non-metallic materials (e.g., a store window, vandal-resistant materials up to 18 mm thick, oversized glass). ThruTouch offers true flat surfaces without bezels, as well as unsurpassed resistance to impacts, scratches and vandalism commonly found in public-access applications.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Elo Entuitive 1547L Specs (pdf)

15" LCD Rear-Mount Touchmonitor (3000 Series)

Features

Long lasting product cycle—enclosure controlled by Elo specifications
Panel upgrades possible to the model in the future without external changes
Integrated precision minibezel with watertight 0.5 mm seal
Multiple mounting options including rear-mount, VESA mount, and front/panel-mount bezels or 19" rack-mount bezel
Choice of touch technologies: AccuTouch Five-Wire Resistive, CarrollTouch Infrared Technology, IntelliTouch Surface Wave, Projected Capacitive, impact resistant SecureTouch Surface Wave, or Surface Capacitive.
Serial or USB touch interface
Multilingual remote on-screen display (OSD)
Internal power supply
Worldwide agency approvals
3-D electronic design files available

Specifications

Model
Series	3000
Availability	Worldwide
Case/Bezel color	Black
Display	Size: 15" diagonal Type: Active matrix TFT LCD Aspect ratio: 4 x 3
Useful screen area	Horizontal: 11.9" (304 mm) Vertical: 8.9" (228 mm)
Monitor dimensions (dimensions shown are with horizontal mounting bracket)	Projected Capacitive/ThruTouch Width: 18.1" (460 mm) Projected Capacitive/ThruTouch Height: 11.5" (293 mm) Projected Capacitive/ThruTouch Depth: 2.52" (64 mm) Other monitors width: 18.1" (460 mm) Other monitors height: 11.6" (296 mm) Other monitors depth: 2.83" (72 mm)
Optimal (native) resolution	1024 x 768 at 60, 70, or 75 Hz
Other supported resolutions	1024 x 768 at 65 Hz (Sun) 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72, or 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66 (Mac), 72 or 75 Hz
Colors	16 million
Brightness LCD panel	350 cd/m² (typical)
Brightness LCD panel with touchscreen	AccuTouch: 287 cd/m² (typical) CarrollTouch: 322 cd/m² (typical) IntelliTouch: 322 cd/m² (typical) Projected Capacitive/DirectTouch: 298 cd/m² (typical) Projected Capacitive/ThruTouch: 315 cd/m² (typical) (brightness will vary with different materials/thickness that are used to cover the touchscreen) SecureTouch: 315 cd/m² (typical) Surface capacitive: 276 cd/m² (typical)
Response time	25 msec (typical)
Viewing angle (typical, from center)	Horizontal (left/right): ±75° or 150° total Vertical (up/down): 75/50° or 125° total
Contrast ratio	500:1
Input video format	Analog (no proprietary video card needed)
Input video signal connector	Mini D-Sub 15-Pin VGA type
Input frequency	Horizontal: 31.5–60 kHz Vertical: 56–75 Hz
Power supply	Type: Internal power supply Input (line) voltage: 100–240 VAC, 50–60 Hz
Power dissipation	22 W (typical)
Temperature	Operating: 0°C to 50°C Storage: -30°C to 60°C
Humidity	Operating: 20%–80% Storage: 5%–95% noncondensing
Weight with all options (approx.)	Projected Capacitive/DirectTouch Actual: 12.1 lb (5.5 kg) Projected Capacitive/DirectTouch Shipping: 18.7 lb (8.5 kg) Projected Capacitive/ThruTouch Actual: 11.6 lb (5.3 kg) Projected Capacitive/ThruTouch Shipping: 18.2 lb (8.3 kg) Other monitors actual: 10.85 lb (4.92 kg) Other monitors shipping: 16.90 lb (7.66 kg)
Warranty	Projected Capacitive monitors: 1 year Other monitors: 3 years Backlight lamp life: min 40,000 hours to half brightness
Agency approvals	UL/cUL, TÜV-Bauart, CE, FCC/IC/VCCI/C-Tick Class B
On-screen display (OSD)	Remote OSD with 1.8m cable
User's controls	Remote OSD: Auto/Sel, up, down, menu OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time, language (English, German, Spanish, Japanese, French) OSD disable/enable: power, volume, and/or OSD menu
Mounting options	75 mm VESA mount Panel cut-out Mounting brackets included 19" rack-mount option (not available for Projected Capacitive/ThruTouch) Panel-mount option (not available for Projected Capacitive)

Extended Details

Refine Your Options

Elo Entuitive 1547L Touchscreen
Part #: 516452-000 | SKU: ELO15368

3000 Series Entuitive 1547L 15 Inch LCD Rear Mount Touchmonitor (Modular Kiosk, AccuTouch Touch Technology, Serial Interface and Antiglare Surface Treatment) Color: Dark Gray
Elo Entuitive 1547L Touchscreen
Part #: C32978-000 | SKU: ELO15369

Entuitive 15 Inch LCD Rear Mount Touchmonitor (AccuTouch Touch Technology, USB Interface and Antiglare Surface Treatment) - Color: Dark Gray
Elo Entuitive 1547L Touchscreen
Part #: 387888-000 | SKU: ELO15370

3000 Series Entuitive 1547L 15 inch LCD Rear Mount Touchmonitor (Modular Kiosk, CarrollTouch Touch Technology, Serial Touch Interface and Anti-glare Surface Treatment) Color: Dark gray
Elo Entuitive 1547L Touchscreen
Part #: F10657-000 | SKU: ELO15371

3000 Series Entuitive 1547L 15 Inch LCD Rear Mount Touchmonitor (CarrollTouch Touch Technology, USB Interface and Antiglare Surface Treatment) Color: Dark Gray
Elo Entuitive 1547L Touchscreen
Part #: 823428-000 | SKU: ELO15372

Entuitive 1547L LCD Rear Mount Touchmonitor (15 in., Modular Kiosk, IntelliTouch Touch Technology, Serial Interface and Antiglare Surface Treatment)
Elo Entuitive 1547L Touchscreen
Part #: 576426-000 | SKU: ELO15373

3000 Series Entuitive 1547L 15 Inch LCD Rear Mount Touchmonitor (IntelliTouch Touch Technology, USB Interface and Antiglare Surface Treatment) Color: Dark Gray
Elo Entuitive 1547L Touchscreen
Part #: F60749-000 | SKU: ELO15374

3000 Series Elo Entuitive 1547L 15 Inch LCD Rear Mount Touchmonitor with Projected Capacitive Touch Technology (DirectTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment) - Color: Black
Elo Entuitive 1547L Touchscreen
Part #: A71384-000 | SKU: ELO15375

3000 Series Elo Entuitive 1547L 15 Inch LCD Rear Mount Touchmonitor with Projected Capacitive Touch Technology (ThruTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment)
Elo Entuitive 1547L Touchscreen
Part #: C80308-000 | SKU: ELO15376

Entuitive 15 Inch LCD Rear Mount Touchmonitor (SecureTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment) - Color: Dark Gray
Elo Entuitive 1547L Touchscreen
Part #: A65349 | SKU: ELO20742

3001 Series Elo Entuitive 1547L 15 inch LCD Rear Mount Touchmonitor with Projected Capacitive Touch Technology (ThruTouch Touch Technology, Serial Touch Interface and Anti-glare Surface Treatment)
