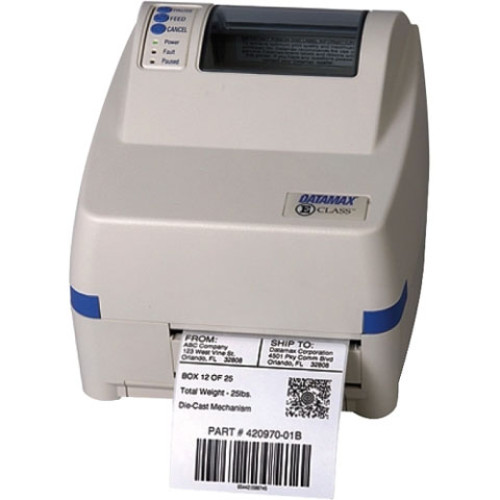

Datamax Barcode Label Printer
Part #: JA6-00-1J000B00 | SKU: 84515

Products and parts from Datamax-O-Neil.

Datamax Barcode Label Printer

Part Details: E-4304, Thermal transfer Printer (300 dpi, 4.1 inch Print width, 4 ips Print speed, Serial, Parallel and USB Interfaces and DPL) - Color: Gray

Need a different version of the Datamax Accessory? View all 947 configurations

Additional Information

Filter	No
Interface Options	Parallel, USB
Label Core	No
Manufacturer	No
Max Label Width	4.3
Max Roll Outer Diameter	5
Maximum Print Width	4.12
Model Name	Parts
Print Method	No
Print Resolution	No
Print Speed	4
Printer Mobility	No
Printer Type	Desktop
Product Condition	No

Technical Information

Maximum Mono Print Speed: 4 in/s
Maximum Print Resolution: 300 dpi
Print Color: Monochrome
Maximum Print Width: 4.10"
Recommended Use: Label Print
Barcode Symbology Supported:
- Code 93
- UPC-A
- UPC-E
- Interleaved 2 of 5 A
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- Data Matrix
- QR Code
- Aztec Code
- USD-8
- TLC 39
- Micro PDF-417

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Brand Name: Datamax-O'Neil
Manufacturer: Datamax-O'Neil
Product Model: E-4304
Product Name: E-Class E-4304 Thermal Label Printer
Product Line: E-Class

Physical Characteristics

Height: 7.1"
Width: 8.8"
Depth: 10"

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 4.30"
Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Perforated Label
- Continuous Tag
- Ticket Stock
Media Thickness: 10 mil
Media Sensor: Reflective Media Sensor
Label Core Size: 1"
Ribbon Core Size: 0.50"
Maximum Roll Diameter: 5"

Other

Platform Supported: PC
Additional Information:
- See through media window
- Flash upgradeable firmware
- Graphics Supported: .PCX, .BMP and .IMG files
- 3-button, 3-LED control panel for maximum configuration flexibility and printer status indication

Memory

Standard Memory: 2 MB
Memory Technology: DRAM
Flash Memory: 1 MB

Warranty

Limited Warranty: 1 Year
