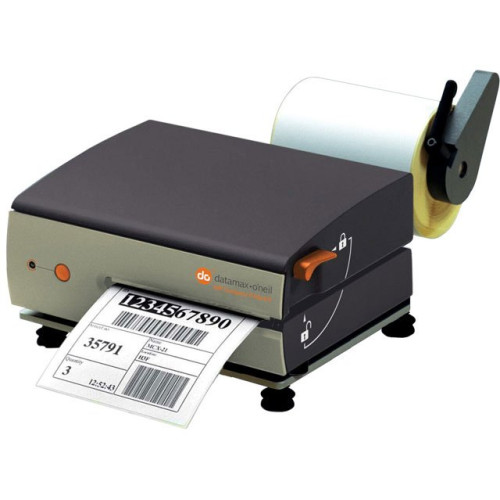

Datamax-O'Neil MP Compact4 Mark II Barcode Label Printer
Part #: XA3-00-08000000 | SKU: DAT101123

The Datamax-O-Neil MP Compact4 Mark II shares the same small footprint size of most desktop-sized entry level printers and the industrial grade ruggedness of table top-sized mid-range printers. The MP Compact4 Mark II the first to truly combine rugged reliability in a small footprint. The MP Compact4 Mark II has an incredibly small footprint which allows it to be used in applications where space is limited. The compact size takes up less than half the space of a traditional desktop label printer but with the same duty cycle and strength. The MP Compact4 Mark II printer is constructed on a solid cast metal frame and protected with metal die cast covers. Unlike other small printers, the MP Compact4 Mark II industrial printer is built to withstand the rigors of a warehouse or high volume printing application.

Datamax-O'Neil MP Compact4 Mark II Barcode Label Printer

Part Details: MP Compact4 Mark II, Direct thermal, Wi-Fi (802.11b/g)/Serial/Parallel/USB/Ethernet, Real-time clock, 4MB Flash/8MB DRAM, 200 dpi, 5"/sec print speed

Need a different version of the Datamax-O'Neil MP Compact4 Mark II Barcode Label Printer? View all 12 configurations

Additional Information

Interface Options	Ethernet, USB
Label Core	No
Manufacturer	Datamax-O'Neil
Max Label Width	4.50
Max Roll Outer Diameter	No
Maximum Print Width	4.10
Model Name	MP Compact4 Mark II
Print Method	No
Print Resolution	No
Print Speed	5
Printer Mobility	No
Printer Type	Desktop
Product Condition	No

Datamax-O'Neil MP Compact4 Mark II Specs (pdf)

Technical Information

Maximum Mono Print Speed: 5 in/s
Maximum Print Resolution: 200 dpi
Print Color: Monochrome
Maximum Print Width: 4.10"
Recommended Use: Label Print
Features:
- Real Time Clock
- Mirror Printing
Barcode Symbology Supported:
- QR Code
- PDF-417
- Data Matrix
- Maxi Code
- EAN-13

General Information

Product Type: Direct Thermal Printer
Product Series: MP
Brand Name: Datamax
Manufacturer: Datamax-O'Neil
Product Model: Compact4 Mobile
Product Name: MP Compact4 Mark II Label Printer

Physical Characteristics

Height: 4.1"
Width: 9.1"
Depth: 10.2"
Form Factor: Wall Mount
Weight (Approximate): 7.70 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 4.60"
Media Type:
- Continuous Label
- Fanfold
- Ticket
- Tag
- Gap
- Notch
- Black Mark
- Die-cut Label
Media Thickness: 7 mil
Media Sensor:
- Transmissive Media Sensor
- Label Taken Sensor
Label Core Size: 1.57"
Maximum Roll Diameter: 4"

Fonts & Emulation

Language Emulation:
- PPLB
- PLI
- DPL
- PLZ

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Power Source: AC Supply

Memory

Standard Memory: 8 MB
Memory Technology: DRAM
Flash Memory: 4 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Other

Platform Supported: PC

Warranty

Limited Warranty: 1 Year

Extended Details
