Datamax-O'Neil I-4406 Barcode Label Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

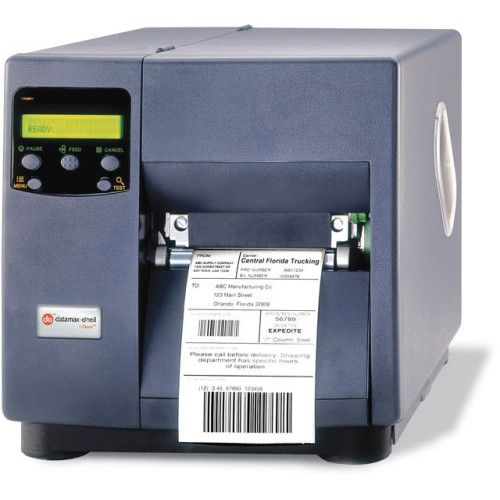

Datamax-O'Neil I-4406 Barcode Label Printer
Part #: R44-00-18040007 | SKU: DAT65920

The DMX-I-4406 Printer from Datamax-O-Neil is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. With a 406 dpi (16 dots-mm) printhead and the ability to accurately maintain print registration the I-4406 produces small labels for applications such as tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses cosmetic labels or adding an intricate Datamatrix Aztec or PDF-417 bar code label to a package. When it comes to reliability ease of use maintenance and high performance there is just one choice: the Datamax-O-Neil I-4406. It's the industry's answer to your high performance high-resolution printing needs.

Datamax-O'Neil I-4406 Barcode Label Printer

Part Details: I-4406, Thermal transfer Printer (400 dpi, 4.1 inch Print width, 6 ips, Serial, Parallel and Ethernet Interfaces and CSI Cutter)
Need a different version of the Datamax-O'Neil I-4406 Barcode Label Printer? View all 16 configurations

Additional Information

Filter No
Interface Options Ethernet, Parallel
Label Core No
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.1
Model Name I-4406
Print Method No
Print Resolution No
Print Speed 6
Printer Mobility No
Printer Type Industrial
Product Condition No
Datamax-O'Neil I-4406 Specs Datamax-O'Neil I-4406 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 406 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Auto-cutter
    • Mirror Printing
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • GS1 DataBar
    • Micro PDF-417
    • HIBCC
    • EAN/JAN-13
    • EAN/JAN-8

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4406
  • Product Name: I-Class I-4406 Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45 lb

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Perforated Label
    • Ticket Stock
    • Black Mark
    • Continuous Form
    • Tag Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Country of Origin: United States
  • Platform Supported: PC

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Display & Graphics

  • Display Screen Type: LCD

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 1 Year
Extended Details

Recommended Accessories for Model: Datamax-O'Neil I-4406 Barcode Label Printer

View All Options

Recommended Labels for Model: Datamax-O'Neil I-4406 Barcode Label Printer

  • Datamax-O'Neil Labels Barcode Label
    Part #: ECL0553-10 | SKU: DAT106506

    1" x 0.38" Thermal transfer Polyester Labels, 10000 labels/roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 1 Roll
    Price: $79.49

  • Datamax-O'Neil Labels Barcode Label
    Part #: 420976 | SKU: DAT22435

    3" x 1" Thermal transfer paper label. 5500 labels/roll - 8 roll case. Also available as a roll (Part# 420976-R). Minimum Order Quantity: $350
    Price: $22.33

  • Datamax-O'Neil Labels Barcode Label
    Part #: ECL2253-10 | SKU: DAT106521

    Electronic Component Labeling, .70" x .375" Thermal transfer synthetic electronics component label. 4 across. 10000 labels/roll, single roll.
    MSRP: $76.70 Price: $69.16

  • Datamax-O'Neil Labels Barcode Label
    Part #: ECL1953-10 | SKU: DAT106518

    Electronic Component Labeling, 1.5" x .50" Thermal transfer synthetic electronics component label. 2 across. 10000 labels/roll, single roll.
    MSRP: $223.56 Price: $214.38

  • Datamax-O'Neil Labels Barcode Label
    Part #: 301969 | SKU: DAT22403

    3" x 2" Direct thermal paper Labels, 2009 labels/roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 8 Rolls
    MSRP: $270.01 Price: $258.95
View All Options

Recommended Printheads for Model: Datamax-O'Neil I-4406 Barcode Label Printer

  • Datamax-O'Neil I-4406 Printhead
    Part #: PHD20-2208-01 | SKU: DAT121286

    Printhead Kit For Printer Model I-4406, Print Resolution 406 dpi
    MSRP: $978.09 Price: $895.32

  • Datamax-O'Neil I-4406 Printhead
    Part #: DPO20-2208-01 | SKU: DAT22279

    I-4406, Replacement printhead, 406 dpi.
View All Options

Recommended Ribbons for Model: Datamax-O'Neil I-4406 Barcode Label Printer

  • Datamax-O'Neil GPR Plus Premium Ribbon
    Part #: 222109 | SKU: DAT22358

    GPR Plus Premium Wax, 3.15" x 1182' Black Wax Ribbon. Compatible with Industrial Printers. 36 ribbon case. Used with paper labels. Also available as a single roll (Part# 222109-R).
    Price: $409.38

  • Datamax-O'Neil GPR Plus Premium Ribbon
    Part #: 222116 | SKU: DAT22362

    4" x 1182' Black Wax Ribbon - Compatible with Industrial printers and Paper Labels - Rolls per Case: 24 - Core Size: 1" - Available as a single roll (222116-R). Minimum Order Quantity: $350
    Price: $411.73

  • Datamax-O'Neil GPR Plus Premium Ribbon
    Part #: 224118 | SKU: DAT28139

    Wax Ribbon, Black, 4.17" x 1476', rolls/case: 24, Core Size: 1", For Use With (Labels): Paper labels, For Use With (Printer): Industrial, Available as a single roll (224118-R)
    Price: $452.69

  • Datamax-O'Neil SDR Resin Ribbon
    Part #: 221716 | SKU: DAT22351

    SDR Resin, 4" x 1182' Black Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polyester labels. Also available as a single roll (Part# 221716-R).
    Price: $1,502.00

  • Datamax-O'Neil PGR Plus Premium Ribbon
    Part #: 295909 | SKU: DAT22391

    Wax-Resin Ribbon, Black, 4.25" x 1182', rolls/case: 24, Core Size: 1", For Use With (Labels): Polypropylene Labels, For Use With (Printer): Industrial, Available as a single roll (295909-R)
    Price: $959.86
View All Options

Recommended Warranties for Model: Datamax-O'Neil I-4406 Barcode Label Printer

  • Datamax-O'Neil Service Contracts Service Contract
    Part #: NSC-DMC-DMX-12 | SKU: DAT17511

    Service Contract - 1 year, 1 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.

  • Datamax-O'Neil Service Contracts Service Contract
    Part #: NSC-DMC-DMX-36 | SKU: DAT17512

    Service Contract - 3 year, 3 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.
View All Options
