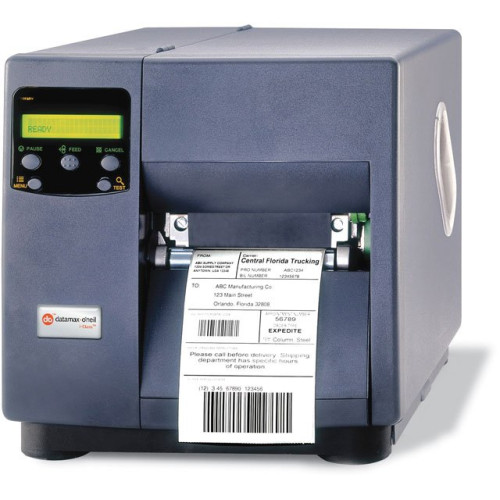

Datamax-O'Neil I-4308 Barcode Label Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

Datamax-O'Neil I-4308 Barcode Label Printer
Part #: R23-00-18040007 | SKU: DAT8900

The DMX-I-4308 is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses or adding an intricate Datamatrix or PDF-417 bar code label to a package.

Datamax-O'Neil I-4308 Barcode Label Printer

Part Details: Thermal transfer Printer (300 dpi, 4.1 inch Print width, 8 ips, Parallel and Serial Interfaces with Cutter)
Need a different version of the Datamax-O'Neil I-4308 Barcode Label Printer? View all 68 configurations

Additional Information

Filter No
Included Features Cutter
Interface Options Parallel
Label Core No
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Model Name I-4308
Print Method No
Print Resolution No
Print Speed 8
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
Datamax-O'Neil I-4308 Specs Datamax-O'Neil I-4308 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4308
  • Product Name: I-4308 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Other

  • Platform Supported: PC
  • Package Contents:
    • I-4308 Label Printer
    • Accessories CD
    • I-4308 Label Printer
    • Accessories CD
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • FCC Class A
    • CE
  • Additional Information:
    • Character Set: Modified IBM Code Page 850
    • Graphics Support: .PCX, .BMP and .IMG files
    • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
    • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Warranty

  • Limited Warranty: 3 Year

Cutter

  • Cutting Method: Automatic
Extended Details
