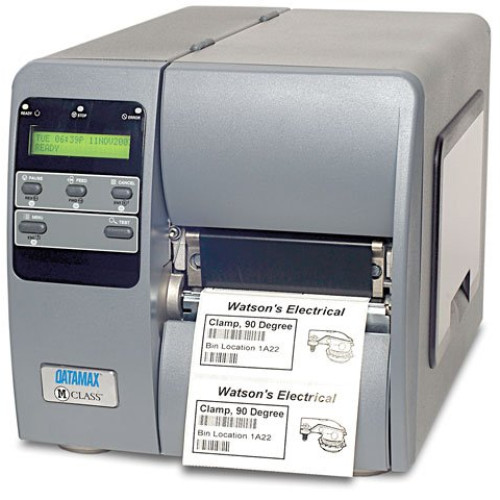

Datamax-O'Neil M-4306 Barcode Label Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

Datamax-O'Neil M-4306 Barcode Label Printer
Part #: K23-00-18000001 | SKU: DAT9531

The M-4306 takes the M-Class one step further by offering a 300-dpi printer, ideal for increased legibility on small text or enhanced graphics. The M-4306 adds the 300-dpi capabilities to the same die-cast frame foundation offered on all M-Class printers. The M-4306 is also available with internal Ethernet and MCL.

Datamax-O'Neil M-4306 Barcode Label Printer

Part Details: Thermal transfer Printer (300 dpi, 4 inch Print width, 6 ips Print speed, Serial, Parallel and USB Interfaces, 2MB Flash, Metal Cover and 110V Power supply)
Need a different version of the Datamax-O'Neil M-4306 Barcode Label Printer? View all 9 configurations

Additional Information

Filter No
Interface Options Parallel, USB
Label Core No
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Model Name M-4306
Print Method No
Print Resolution No
Print Speed 6
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
Datamax-O'Neil M-4306 Specs Datamax-O'Neil M-4306 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4306
  • Product Name: M-4306 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.3"
  • Width: 9.8"
  • Depth: 18.1"

Other

  • Platform Supported: PC
  • Package Contents:
    • M-4306 Label Printer
    • Black Power Cord U.S Plug
    • Accessories CD
    • M-4306 Label Printer
    • Black Power Cord U.S Plug
    • Accessories CD
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • FCC Class A
    • CE
  • Additional Information:
    • On-board Real Time Clock
    • Graphics supported .PCX, .BMP and .IMG files
    • 8" outer diameter on a 3.0" core and 7" on a 1.5" core

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Ticket Stock
    • Perforated Label
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 1 Year
Extended Details
