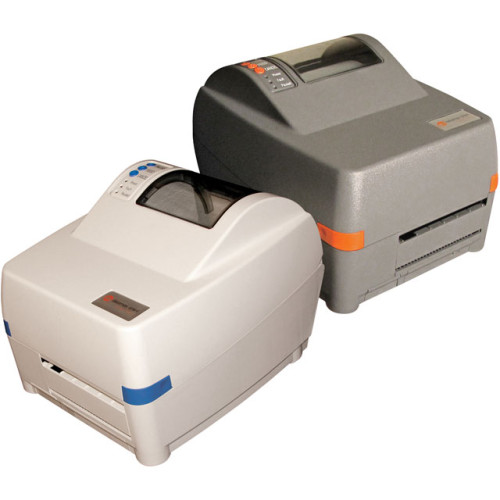

Datamax-O'Neil E-4205e Barcode Label Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

Datamax-O'Neil E-4205e Barcode Label Printer
Part #: JA2-00-1J000B00 | SKU: DAT79687

The Datamax-O-Neil E-4205e E-Class Mark II thermal desktop printer offers a proven and reliable label and tag printing solution in a compact footprint. The E-4205e features a 4.25 print width, a print speed of 5/second and a resolution of 203 dpi. It is ideal for a vast number of diverse applications that require a dependable and cost effective barcode printer. The Datamax-O-Neil E-4205e has a uniquely designed adjustable print mechanism with advanced media sensing.

Datamax-O'Neil E-4205e Barcode Label Printer

Part Details: E-4205e, Thermal transfer printing, 203 dpi, 4.25 print width, 5/sec print speed, USB interface. Color: White
Need a different version of the Datamax-O'Neil E-4205e Barcode Label Printer? View all 36 configurations

Additional Information

Filter No
Interface Options USB
Label Core No
Manufacturer Datamax-O'Neil
Max Label Width 4.3
Max Roll Outer Diameter 5
Maximum Print Width 4.25
Model Name E-4205e
Print Method No
Print Resolution No
Print Speed 5
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5 inch
Datamax-O'Neil E-4205e Specs Datamax-O'Neil E-4205e Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: Mark II E-4205e
  • Product Name: E-Class Mark II E-4205E Thermal Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.1"
  • Width: 8.8"
  • Depth: 10"
  • Form Factor: Desktop
  • Color: White

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.30"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Additional Information:
    • 3-button, 3-LED Control Panel
    • Easy Access Cantilevered Printhead
    • Clear See-Through Media Window
    • Flash Upgradeable Firmware

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year
Extended Details
