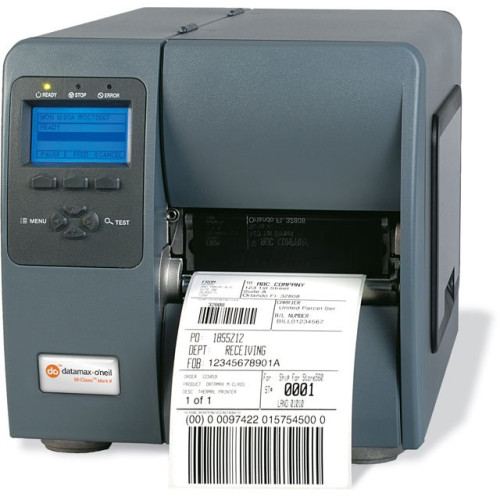

Datamax-O'Neil I-4606 Mark II Barcode Label Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

Datamax-O'Neil I-4606 Mark II Barcode Label Printer
Part #: I16-00-48400007 | SKU: DAT188368

The Datamax-O-Neil I-4606 Mark II offers the fastest processor, largest memory and widest selection of communication ports available in a mid-range printer, the I-4606 Mark II provides lower operating costs and flawless print quality. For applications as diverse as shipping and receiving, product identification, pharmacy labeling and asset tracking, the I-4606 Mark II will maintain its reputation for providing outstanding for performance, reliability and value.

Datamax-O'Neil I-4606 Mark II Barcode Label Printer

Part Details: I4606E MARK II 4 600 DPI TT Internal rewind USB Serial Parallel 64MB
Need a different version of the Datamax-O'Neil I-4606 Barcode Label Printer? View all 16 configurations

Additional Information

Included Features No
Interface Options Parallel, USB
Label Core No
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.16, 4.65
Model Name I-4606 Mark II
Print Method No
Print Resolution No
Print Speed 6
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
Datamax-O'Neil I-4606 Mark II Specs Datamax-O'Neil I-4606 Mark II Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features:
    • Mirror Printing
    • Vertical Printing
    • Horizontal Printing
    • Rewind
    • Media Supply Hub
  • Barcode Symbology Supported:
    • Code 3 of 5
    • UPC-A
    • UPC-E
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC 128
    • EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4606E
  • Product Name: I-Class Mark II I-4606E Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Black Mark
    • Ticket Stock
    • Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • I-Class Mark II I-4606E Label Printer
    • Software CD
    • I-Class Mark II I-4606E Label Printer
    • Software CD
  • Certifications & Standards:
    • Unicode
    • UTF8

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLI
    • PLZ

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year
