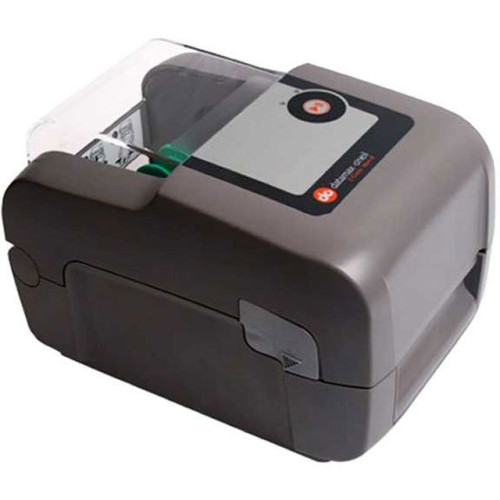

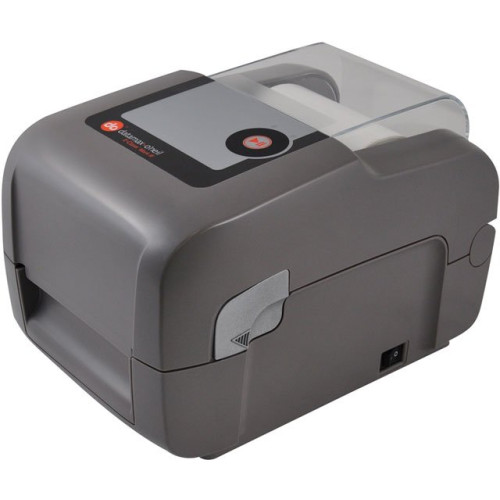

Datamax-O'Neil E-4204B Barcode Label Printer Datamax-O'Neil E-4204B Barcode Label Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

Datamax-O'Neil E-4204B Barcode Label Printer
Part #: EB2-00-1JP00B00 | SKU: DAT114999

The Datamax-O-Neil E-4204B is the E-Class basic model which meets the needs of the most popular barcoding applications. Standard features include USB and serial ports, 203dpi, 4ips speed and 4.25 width. Thermal transfer and label peeler are also available.

Datamax-O'Neil E-4204B Barcode Label Printer

Part Details: E-4204B, Thermal transfer, Serial and USB interfaces, 203 dpi, 4.25 print width, 4/sec print speed, 16MB DRAM/64MB Flash, DPL, peeler with label sensor, tear bar, LED/Button UI, US power cord.
Need a different version of the Datamax-O'Neil E-4204B Barcode Label Printer? View all 47 configurations

Additional Information

Included Features No
Interface Options USB
Label Core No
Manufacturer Datamax-O'Neil
Max Label Width 4.4
Max Roll Outer Diameter 5
Maximum Print Width 4.25
Model Name E-4204B
Print Method No
Print Resolution No
Print Speed 4
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5 inch, 1 inch
Datamax-O'Neil E-4204B Specs Datamax-O'Neil E-4204B Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Dispenser
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-E
    • UPC-A
    • Plessey
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • FIM
    • UPS Maxi Code
    • Telepen
    • PDF-417
    • Data Matrix
    • Aztec Code
    • QR Code
    • TLC 39
    • GS1 DataBar
    • Micro PDF-417
    • TCIF
    • UPC 2 and 5 Digit Addendums

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4204B
  • Product Name: E-Class Mark III E-4204B Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.25 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Fanfold
    • Tag
    • Gap
    • Black Bar
    • Notch
    • Perforated Label
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • PLZ
    • PLB
    • PLE
    • PLI
    • DPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year
Extended Details
