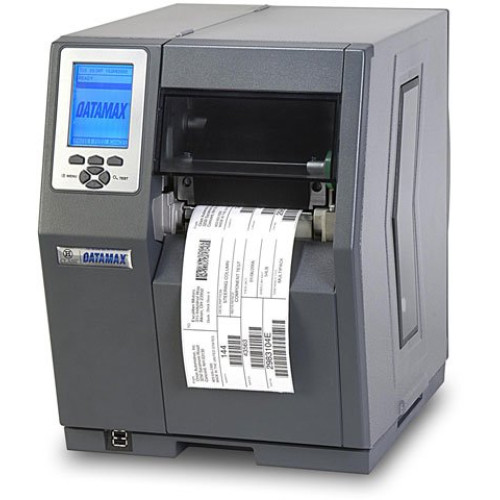

Datamax-O'Neil H-4606X RFID Printer
Part #: C46-J2-480000R4 | SKU: DAT34804

The Datamax-O-Neil H-4606X RFID thermal barcode printer family is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. Datamax-O-Neil H-4606X RFID printers provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. Datamax-O-Neil H-4606X RFID printers offer the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. In addition, Datamax-O-Neil H-4606X RFID printers are designed with options to address evolving RFID applications.

Datamax-O'Neil H-4606X RFID Printer

Part Details: H-4606X RFID, TALL DISP BI-DIR TT RFID HF METAL MEDIA HUB

Need a different version of the Datamax-O'Neil H-4606X RFID Printer? View all 4 configurations

Additional Information

Form Factor	No
Frequency Range	HF
Interface	Ethernet, Parallel, RS-232 Serial, USB
Manufacturer	Datamax-O'Neil
Maximum Print Width	No
Model Name	H-4606X
Print Resolution	No
Product Condition	No

Datamax-O'Neil H-4606X Specs (pdf)

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Brand Name: Datamax-O'Neil
Manufacturer: Datamax-O'Neil
Product Model: 4606X
Product Name: H-Class 4606X RFID Label Printer
Product Line: H-Class

Technical Information

Maximum Mono Print Speed: 6 in/s
Maximum Print Resolution: 600 dpi
Maximum Print Width: 4.16"
Recommended Use: RFID Label Print

Physical Characteristics

Height: 16.4"
Width: 12.6"
Depth: 19.3"

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 4.65"
Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
Label Core Size: 3"
Ribbon Core Size: 1"
Maximum Roll Diameter: 8"

Other

Package Contents:
- H-Class 4606X RFID Label Printer
- Black power cord w/U.S. plug
- H-Class 4606X RFID Label Printer
- Black power cord w/U.S. plug
Certifications & Standards: Safety Standards:

Memory

Standard Memory: 16 MB
Flash Memory: 8 MB

Power Description

Input Voltage: 110 V AC

RFID

Maximum Operating Frequency: 13.56 MHz

Extended Details
