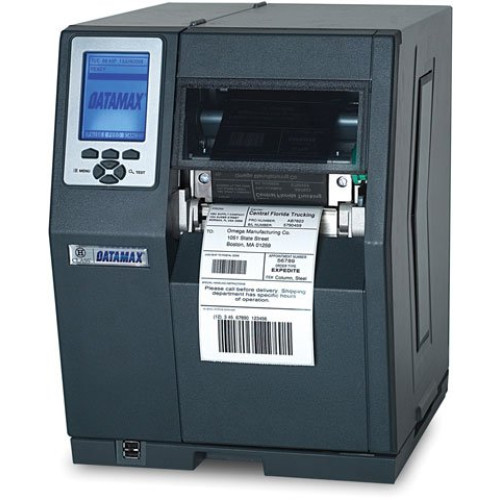

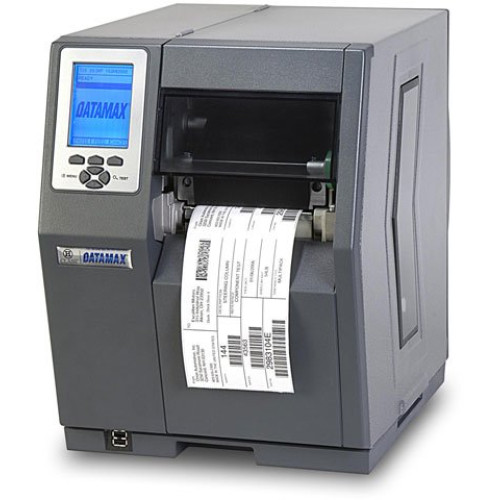

Datamax-O'Neil H-4212X Barcode Label Printer Datamax-O'Neil H-4212X Barcode Label Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

Datamax-O'Neil H-4212X Barcode Label Printer
Part #: C32-00-48000004 | SKU: DAT22252

Datamax-O-Neil H-4212X Direct Thermal Transfer Printer (203 dpi, 4.1 Inch Print Width, 12 ips Print Speed, Serial and Parallel Interfaces, MET Media Hub and 8MB Flash)

Datamax-O'Neil H-4212X Barcode Label Printer

Part Details: H-4212 X, Thermal transfer 4.09" width, 12"/sec, 203 dpi, Serial-Parallel-USB-Ethernet interface, 3" media hub and US power cord.
Need a different version of the Datamax-O'Neil H-4212X Barcode Label Printer? View all 40 configurations

Additional Information

Filter No
Interface Options Ethernet, Parallel, USB
Label Core No
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.09
Model Name H-4212X
Print Method No
Print Resolution No
Print Speed 12
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1
Datamax-O'Neil H-4212X Specs Datamax-O'Neil H-4212X Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 200 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-4212X
  • Product Name: H-4212X Thermal Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 16.4"
  • Width: 12.6"
  • Depth: 19.3"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 9"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • Datamax H-4212X Label Pinter
    • Accessories CD
    • Datamax H-4212X Label Pinter
    • Accessories CD
  • Certifications & Standards:
    • Safety Standard:
    • FCC
    • CE
  • Additional Information:
    • Real Time Clock:
    • Printer stores time and date with battery backup; Time stamp at print capability
    • Graphics Support:
    • PCX, .BMP, .IMG, and Datamax ASCII Format files

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 2 Year
Extended Details
