Datamax-O'Neil OC3 Portable Barcode Printer
Datamax-O'Neil Barcode Label Printer and Portable Printer

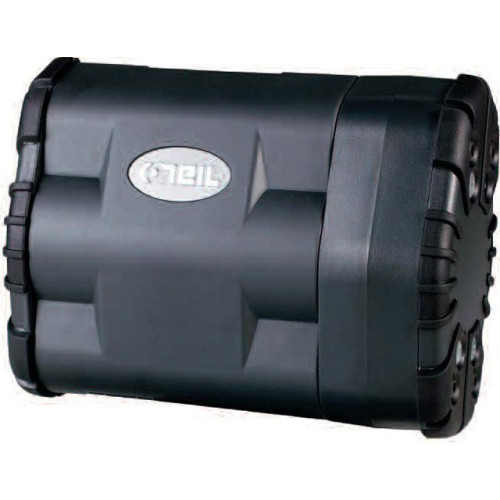

Datamax-O'Neil OC3 Portable Barcode Printer
Part #: 200333-100 | SKU: DAT28887

The OC3, the thermal portable printer model that prints label and receipt media up to 3 inches wide, has been designed to meet the continually expanding requirements associated with retail, hospitality, transportation, and field sales and services applications. The advanced features standard with the OC3 offer extreme adaptability to meet the unique and industry specific portable printing requirements demanded in today's evolving business environment. These features include wireless local area network or wireless personal area networking capabilities; high print quality, Flash memory, intelligent power management, and font and language flexibility.

Datamax-O'Neil OC3 Portable Barcode Printer

Part Details: Direct thermal Portable Printer (Bluetooth)
Need a different version of the Datamax-O'Neil OC3 Portable Barcode Printer? View all 6 configurations

Additional Information

Filter No
Interface Options Bluetooth
Label Core 0.4 inches
Manufacturer Datamax-O'Neil
Max Label Width 3.15
Max Roll Outer Diameter 2.25
Maximum Print Width 2.84, 3.00
Model Name OC3
Print Method No
Print Resolution No
Print Speed 1.83
Printer Mobility Mobile
Printer Type Mobile
Product Condition No
Datamax-O'Neil OC3 Specs Datamax-O'Neil OC3 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.84"
  • Recommended Use: Receipt Print
  • Features: Belt Clip
  • Barcode Symbology Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI PLESSEY
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • Aztec Code
    • PDF-417
    • QR Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: OC3
  • Product Name: OC3 Receipt Printer
  • Product Line: OC

Physical Characteristics

  • Form Factor: Portable

Interfaces/Ports

  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • OC3 Receipt Printer
    • Roll of Media
    • Swivel Belt Clip
    • OC3 Receipt Printer
    • Roll of Media
    • Swivel Belt Clip
  • Certifications & Standards:
    • FCC B
    • CE
    • C-Tick
    • UL/cUL
    • GS
  • Additional Information:
    • External DC jack, 12-15V, built-in spike and surge protection
    • External charge contacts, 12 -15V, built-in spike and surge protection
    • Prints approx. 5304-2" x 1.125" labels on a single battery charge (22.1 hours)

Media Types & Handling

  • Media Type:
    • Receipt
    • Synthetic Media
    • UV Coated Media
    • Label
  • Media Size: 2.25" x Roll Paper
  • Maximum Roll Diameter: 2.25"

Memory

  • Standard Memory: 2 MB
  • Flash Memory: 4 MB

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 7.2 V DC

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Extended Details
