- Read all standard 1D codes
- Datalogic"s patented "Green Spot" technology for good-read feedback
- User replaceable scan window
- Two multiple interface options support the most popular interface combinations
- Supports GS1 DataBar codes
- Remote Host download functions (Model QD2110)
- Water and Particulate Sealing Rating: IP42
- Drop resistance to 1.5 m / 5.0 ft
Datalogic QuickScan I QD2100 Specs
Decoding Capability
- 1D / Linear codes
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
- Postal Codes
- China Post
- Stacked Codes
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- Current
- Operating (Typical)
- 340 mA @ 5 VDC
- Standby/Idle (Typical)
- 190 mA @ 5 VDC
- Operating (Typical)
- Input Voltage
- QD2110
4 -14 VDC - QD2130
5 VDC +/- 10%
- QD2110
- Ambient Light
- 100,000 lux
- Drop Resistance
- Withstands repeated drops from 1.5 m / 4.9 ft onto a concrete surface
- ESD Protection (Air Discharge)
- 20 kV
- Humidity (Non-Condensing)
- 5 - 95%
- Particulate and Water Sealing
- IP42
- Temperature
- Operating
- 0 to 50 ?C / 32 to 122 ?F
- Storage/Transport
- -40 to 70 ?C / -40 to 158 ?F
- Operating
- RS-232 / IBM 46XX / USB Multi-Interface
- QD2100
- RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
- QD2130
- Colors Available
- Black
- White
- Dimensions
- 17.0 x 7.1 x 6.6 cm / 6.7 x 2.8 x 2.6 in
- Weight
- 121.9 g / 4.3 oz
- Light Source
- Red LED 610-650 nm
- Print Contrast Ratio (Minimum)
- 15%
- Read Rate (Maximum)
- 270 reads/sec.
- Reading Angle
- Pitch
- +/- 65?
- Roll (Tilt)
- +/- 45?
- Skew (Yaw)
- +/- 65?
- Pitch
- Reading Indicators
- Beeper (Adjustable Tone)
- Datalogic 'Green Spot' Good Read Feedback
- Good Read LED
- Resolution (Maximum)
- 0.102 mm / 4 mils
- Minimum distance determined by symbol length and scan angle.
- Printing resolution, contrast, and ambient light dependent.
- 4 mils
- 2.0 to 11.0 cm / 0.8 to 4.3 in
- 5 mils
- 1.5 to 15.0 cm / 0.6 to 6.0 in
- 7.5 mils
- 0.8 to 25.0 cm / 0.3 to 10.0 in
- 10 mils
- 0.8 to 38.0 cm / 0.3 to 15.0 in
- 13 mils
- 1.9 to 45.0 cm / 0.7 to 18.0 in
- 20 mils
- 2.5 to 65.0 cm / 1.0 to 26.0 in
- Agency Approvals
- The product meets necessary safety and regulatory approvals for its intended use.
- The Quick Reference Guide for this product can be referred to for a complete list of certifications.
- Environmental Compliance
- Complies to China RoHS
- Complies to EU RoHS
- LED Classification
- IEC 60825-1 Class 1 LED Product
- Datalogic Aladdin
- Datalogic Aladdin configuration program is available for download at no charge
- Remote Host Download
- Lowers service costs and improves operations
- QD2110
- Lowers service costs and improves operations
- 5-Year Factory Warranty
Refine Your Options
Shop By
Shopping Options
-
Scanner Capability
-
Ruggedness
-
Included Cables
-
Datalogic QuickScan I QD2100 Barcode Scanner

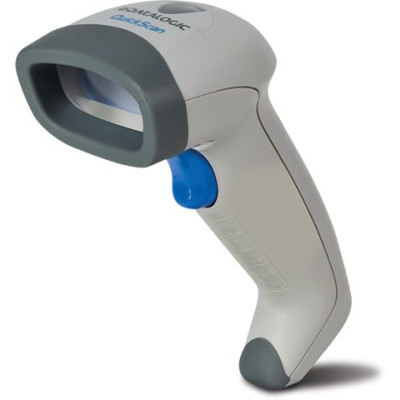

Part #: QD2130-WH | SKU: 67740Imager only, Multi Interface (Keyboard Wedge, USB, Wand and RS232). Cables not included, see accessories. Color: White -
Datalogic QuickScan I QD2100 Barcode Scanner
Part #: QD2130-WHK3 | SKU: 100084QuickScan I QD2100 Imager (Keyboard Wedge with Keyboard Wedge Cable) - Color: White -
Datalogic QuickScan I QD2100 Barcode Scanner
Part #: QD2110-BKK2 | SKU: 172901SCANNER ONLY. 1D Linear Imager, AUX Port/MGL Interfaces. Color: Black. Cables not included, see accessories. -
Datalogic QuickScan I QD2100 Barcode Scanner
Part #: QD2130-BKK13 | SKU: 241016Datalogic QuickScan I QD2100 Handheld Barcode Scanner Kit - Cable Connectivity - 270 scan/s - 1D - Omni-directional - USB - Black -
Datalogic QuickScan I QD2100 Barcode Scanner
Part #: QD2130-BK-C128 | SKU: 506385QUICKSCAN I QD2100, BLACK, SCANNER ONLY, 1D IMAGER, PS/2/USB/WAND/RS-232 INTERFACES NOT INCLUDED
