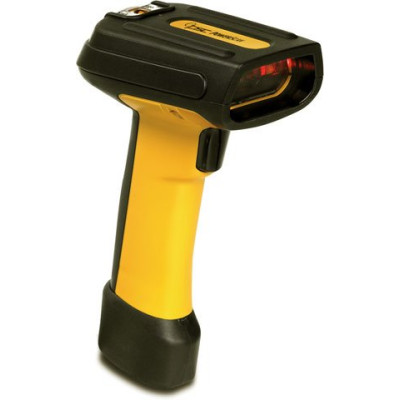

Datalogic PowerScan 7000 Barcode Scanner

PowerScan 7000 SRI Industrial Strength Imaging Scanner

Features

• Solid state design makes the PowerScan 7000 the most rugged and reliable scanner on the market.
• Lowest priced full performance industrial handheld scanner on the market
• Best dust and water sealing (IP65) on the market
• Industry leading standard range depth of field (DOF)
• Full multi-interface capability
• Industry Leading Four Year Warranty

Accessories

• Universal Kit
• Scan Stand
• Take Up Reel
• Holster/Fork Lift Mount
• Power Hood

High Performance Scanning with Market Leading Ruggedness and Durability
The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) has been designed from the ground up to be the most rugged, durable and reliable industrial handheld scanner on the market. It is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications.

The overmold covers all of the likely drop contact points, adding an extra degree of shock protection for the scanner. In fact the scanner can withstand 50 drops of two meters (6.5') to concrete. The scanner is sealed to dust and water at an industry leading IP65 rating. It can operate between -30° C and 50° C. These specifications are not surpassed by any competitive scanner.

The innovative and unique PSC optical design allows the scanner to feature a depth of field that is unsurpassed by any other standard range scanner, whether imager or laser. An optional integrated laser aiming beam is also available for applications that need more precise or brighter aiming cues. The high-speed digital hardware and advanced PSC decoding algorithms allow read rates up to 500 scans per second, making the PowerScan 7000 SRI the fastest industrial scanner available.

The scanner features a multiple interface architecture that allows connection to the majority of the host terminals on the market; including RS-232, USB, Keyboard Wedge, Wand Emulation and IBM POS interfaces. The scanner works with most of the same cables as the family of PowerScan laser and 2D imaging scanners.

PowerScan 7000 SRI Specifications

Mechanical

Dimensions

• Height: 7.5" / 190 mm
• Width: 3.0" / 75 mm
• Length: 4.5" / 115 mm

Weight

• 11 oz / 312 g (without cable)

Beeper/Speaker

• 87 dBA for operator @ 50 cm (typical)

Environmental

Temperature Rating

• Operating: -22° F to 122° F / -30 to 50° C
• Storage: -40° to 140° F / -40 to 60° C

Humidity

• 5 to 95% NC

Shock

• Withstands 50 drops from 6.5' / 2 m to concrete

Vibration

• Meets MIL-STD-810E

Water & Particulate Sealing

• IP65

Optical

Scanning Width

• 2" wide at 1" from scanner; 6" wide at 7" from scanner

Minimum Resolution

• 4 mil minimum element size

Skew (Yaw)

• ? 60°

Pitch

• ? 65°

Roll

• ? 40°

Ambient light capability

• Up to 40,000 Lux

Depth of Field Range Comparisons

Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, ambient light, temperature, and scan angle dependant.

Electrical

Input Voltage

• +4 to 14 VDC

Input Power (typical)

• Operating (scanning): 1.48 W
• Standby (idling with no trigger): 0.96 W

Input Current (typical)

• Operating (scanning): 295 mA @ 5 VDC
• Standby (idling with no trigger): 190 mA @ 5 VDC
• Sleep: 1 mA @ 5V

Decoding Capability (autodiscriminates among)

• Codabar
• Code 93
• Code 128
• Code 128 add-ons
• Code 128 ISBT
• EAN 128
• Italian Pharmacode 39
• P2 /P5 add-ons
• MSI/Plessey
• Interleaved 2 of 5
• Standard 2 of 5
• RSS-14
• RSS Expanded
• UPC/EAN/JAN
• PDF-417

Host Communications

• RS-232
• Keyboard Wedge
• USB
• Wand Emulation
• IBM
• 46XX
• USB (IBM SurePos)

In addition to standard PC/AT/PS/2, the keyboard wedge interface supports the following:

• Wyse 55, 60, 120, 150, etc.; IBM 347X/3487/31XX; Digital VT220, 240, 320, 420, 510, 520; Sun 420, ITX, and Sparc 5/10.

Safety & Regulatory

Electrical: Complies to:

• GostR
• UL
• cUL
• EN60950

Emissions: Complies to:

• FCC
• EN 55022
• CISPR22
• VCCI

Laser Classification

• CDRH Class II, (Caution: Laser Radiation - do not stare into beam)
• IEC 60825 Class 2
