Datalogic QS6500BT Barcode Scanner Datalogic QS6500BT Barcode Scanner Datalogic QS6500BT Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

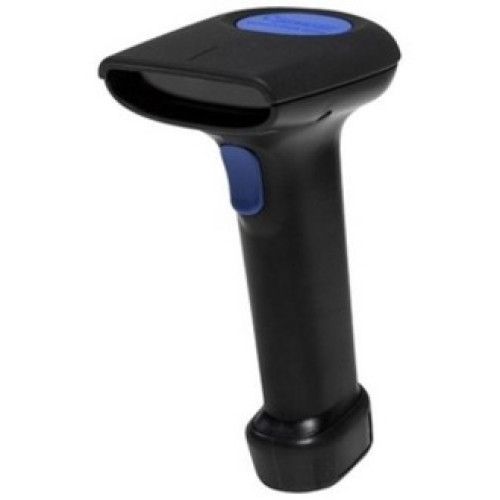

Datalogic QS6500BT Barcode Scanner
Part #: QS65B-3010000 | SKU: 20289

The QuickScan QS6500BT, combines the latest in linear imaging technology with certified Bluetooth cordless communications. The QS6500 is designed for customers seeking better performance in a handheld scanner for retail, health care, inventory, light commercial, and office applications. Both the QuickScan QS6500 and the QS6500BT offer aggressive scanning performance and improved durability and reliability resulting from the elimination of the moving parts typical in older technology laser hand held scanners. The QS6500BT reads almost all 1D bar code symbologies at an extremely fast 450 scans per second while also offering excellent reading performance on hard-to-read bar codes. The QS6500BT also reads most stacked 2D codes like PDF-417 and Micro PDF. The innovative charging-base station allows the product to scan bar codes while its lithium ion battery is charging.

Datalogic QS6500BT Barcode Scanner

Part Details: Datalogic QuickScan QS6500BT Bar Code Reader - Wireless - Linear
Need a different version of the Datalogic QS6500BT Barcode Scanner? View all 45 configurations

Additional Information

Connectivity No
Included Cables USB
Manufacturer No
Model Name QS6500BT
Product Condition No
Specialty Encoding None
QS6500BT Specs QS6500BT Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Rate: 450 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 32.81 ft
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC-E
    • EAN-8
    • JAN-8
    • JAN-13
    • Codabar (NW7)
    • Code 39 Full ASCII
    • Code 11
    • Code 16K
    • Code 93
    • Code 128
    • UK Plessey
    • MSI/PLESSEY
    • RSS-14
    • RSS-14 Expanded
    • RSS-14 Limited
    • RSS-14 Stacked
    • ISBN / Bookland EAN
    • Pharmacode 39
    • Interleaved 2 of 5
    • Standard 2 of 5
    • RSS Composite
    • PDF 417
    • Micro PDF
    • UPC-A
    • IATA
    • UPC-E
    • EAN-8
    • JAN-8
    • JAN-13
    • Codabar (NW7)
    • Code 39 Full ASCII
    • Code 11
    • Code 16K
    • Code 93
    • Code 128
    • UK Plessey
    • MSI/PLESSEY
    • RSS-14
    • RSS-14 Expanded
    • RSS-14 Limited
    • RSS-14 Stacked
    • ISBN / Bookland EAN
    • Pharmacode 39
    • Interleaved 2 of 5
    • Standard 2 of 5
    • RSS Composite
    • PDF 417
    • Micro PDF
    • UPC-A
    • IATA
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2" - 4.50"@5 mil
    • 1" - 6"@7.50 mil
    • 0 mil - 10.50"@10 mil
    • 0 mil - 13"@13 mil - 100% UPC
    • 21"@20 mil
    • 35"@40 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QS6500BT
  • Product Name: QuickScan QS6500BT Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Height: 7.1"
  • Width: 2.9"
  • Depth: 4.4"
  • Color: Black
  • Weight (Approximate): 8 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Electrical:
    • Gost R
    • UL
    • cUL
    • IEC60950
    • Emissions:
    • FCC-A
    • EN 55022-B
    • CISPR-22
    • VCCI-B
    • Radio:
    • FCC Part 15C, R,TTE, IC and IDA (For RF Approved countries)
    • Laser classification:
    • IEC 60825 Class 1 LED
    • Restriction of Hazardous Substances:
    • RoHS Compliant
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • USB
    • IBM 46XX
    • Keyboard Wedge

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
