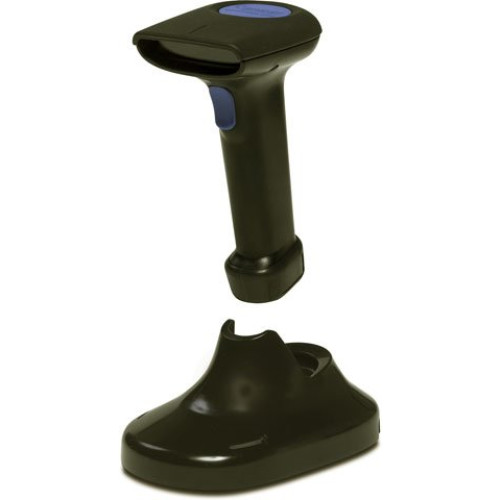

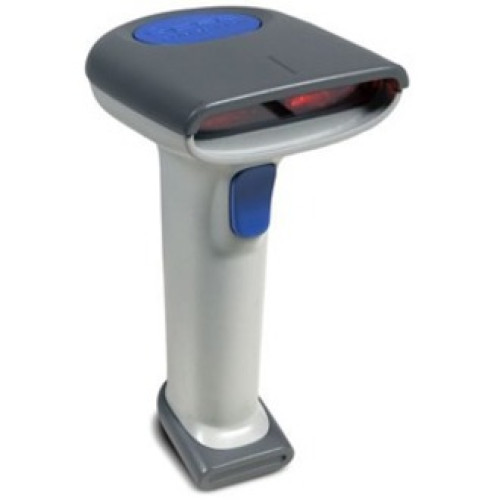

Datalogic QS6500BT Barcode Scanner
Part #: QS65B-1040300-401R | SKU: 63008

The QuickScan QS6500BT, combines the latest in linear imaging technology with certified Bluetooth cordless communications. The QS6500 is designed for customers seeking better performance in a handheld scanner for retail, health care, inventory, light commercial, and office applications. Both the QuickScan QS6500 and the QS6500BT offer aggressive scanning performance and improved durability and reliability resulting from the elimination of the moving parts typical in older technology laser hand held scanners. The QS6500BT reads almost all 1D bar code symbologies at an extremely fast 450 scans per second while also offering excellent reading performance on hard-to-read bar codes. The QS6500BT also reads most stacked 2D codes like PDF-417 and Micro PDF. The innovative charging-base station allows the product to scan bar codes while its lithium ion battery is charging.

Datalogic QS6500BT Barcode Scanner

Part Details: Datalogic QuickScan QS6500BT Bar Code Reader - Wireless - Linear

Need a different version of the Datalogic QS6500BT Barcode Scanner? View all 45 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	QS6500BT
Product Condition	No
Specialty Encoding	None

QS6500BT Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 5 mil(s)
Symbologies Supported:
- UPC-E
- UPC-A
- EAN-13
- EAN-8
- JAN-8
- JAN-13
- Codabar (NW7)
- Code 39 Full ASCII
- Code 11
- Code 16K
- Code 93
- Code 128
- UK Plessey
- MSI/PLESSEY
- RSS-14
- RSS-14 Expanded
- RSS-14 Limited
- RSS-14 Stacked
- ISBN / Bookland EAN
- Pharmacode 39
- Interleaved 2 of 5
- Standard 2 of 5
- RSS Composite
- PDF 417
- Micro PDF
- IATA
Scanner Type: Linear Imager
Scan Rate: 450 scans/sec max
Interface Options:
- RS-232
- USB
- IBM USB
- IBM 46XX
- Keyboard Wedge
- Bluetooth
Interface Connectivity: Cordless
Cordless Range: 10m
Input Voltage Range: 4.5 to 14 V DC
Depth of Field:
- 2.0 - 4.5"@5mils
- 1.0 - 6.0"@7.5mils
- 0.0 - 10.5"@10mils
- 0.0 - 13"@13mils - 100% UPC
- 21"@20mils
- 35"@40mils
Battery Capacity: 800 mAh

General Information

Manufacturer: PSC Inc.
Product Line: QuickScan
Product Name: QuickScan QS6500BT Barcode Scanner

Physical Characteristics

Dimensions:
- 7.1" (180.34mm) x 2.9" (73.66mm) x 4.4" (111.76mm) - Scanner
- 2.9" (73.66mm) x 3.7" (93.98mm) x 6.1" (154.94mm) - Base Station
Weight:
- 8.0 oz - Scanner
- 12.0 oz - Base Station
Color: Gray

Agency Approvals

Agency Approvals:
- Gost R
- UL
- cUL
- IEC60950
- FCC-A
- EN 55022-B
- CISPR-22
- VCCI-B
- FCC Part 15C, R,TTE, IC and IDA (For RF Approved countries)
- IEC 60825 Class 1 LED
- RoHS Compliant

Other

Package Contents:
- QS6500BT Barcode Scanner
- Kit with CD
Cables Included: USB HID Keyboard

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
