Datalogic QS6500 Barcode Scanner Datalogic QS6500 Barcode Scanner Datalogic QS6500 Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

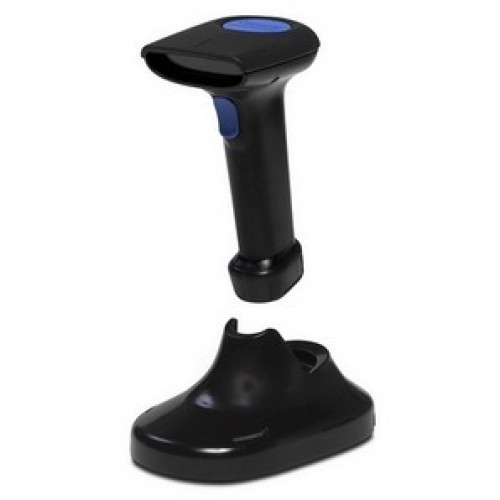

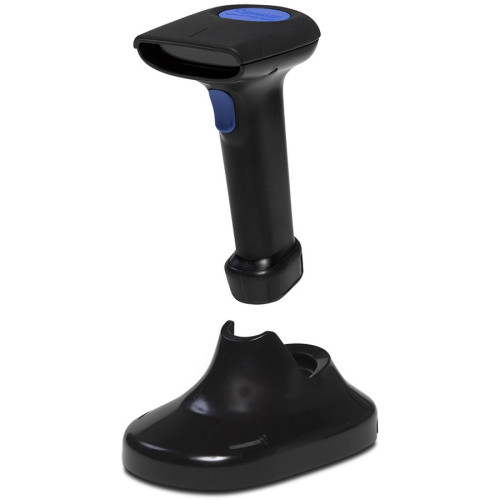

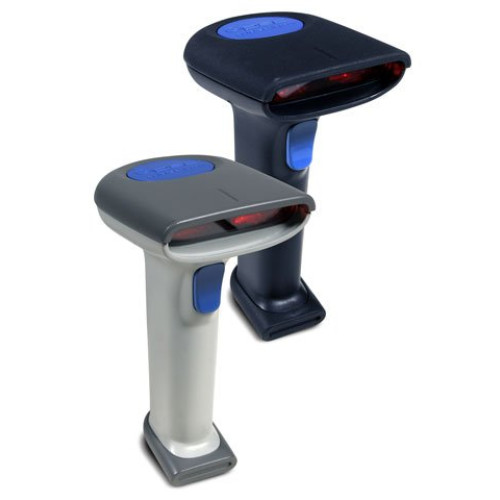

Datalogic QS6500 Barcode Scanner
Part #: QS65-3060042-601 | SKU: 26152

The QuickScan QS6500 is Datalogic's newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QuickScan QS6500 offers the best price/performance in the market. The QS6500 provides many benefits including aggressive scanning performance, an ergonomic enclosure, excellent depth-of-field, snappy 1D and PDF bar code reading, bright targeting beam, and superior durability and reliability.

Datalogic QS6500 Barcode Scanner

Part Details: QS6500 1D Imager (12 Foot Power Plus, IBM USB POT Cable, Stand and CD)
Need a different version of the Datalogic QS6500 Barcode Scanner? View all 96 configurations

Additional Information

Included Cables USB
Manufacturer No
Model Name QS6500
Product Condition No
Specialty Encoding None
QS6500 Specs QS6500 Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 450 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • RSS-14 Stacked
    • RSS-14 Expanded
    • RSS-14
    • RSS-14 Limited
    • ISBN / Bookland EAN
    • Code 39 Full ASCII
    • Pharmacode 39
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • IATA
    • Code 16K
    • Code 11
    • Codabar (NW7)
    • UK Plessey
    • MSI/PLESSEY
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • RSS-14 Stacked
    • RSS-14 Expanded
    • RSS-14
    • RSS-14 Limited
    • ISBN / Bookland EAN
    • Code 39 Full ASCII
    • Pharmacode 39
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • IATA
    • Code 16K
    • Code 11
    • Codabar (NW7)
    • UK Plessey
    • MSI/PLESSEY
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2" - 5"@5 mil
    • 1" - 7"@7.50 mil
    • 0 mil - 12"@10 mil
    • 0 mil - 14"@13 mil
    • 24"@20 mil
    • 40"@40 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QS6500
  • Product Name: QuickScan QS6500 Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Height: 6"
  • Width: 2.9"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • QuickScan QS6500 Barcode Reader
    • 12' Power Plus POT Cable
    • Stand
    • CD
    • QuickScan QS6500 Barcode Reader
    • 12' Power Plus POT Cable
    • Stand
    • CD
  • Certifications & Standards:
    • Electrical:
    • EN60950
    • CSA60950
    • UL60950
    • Emissions:
    • FCC-A
    • EN 55022-B
    • BSMI 13438
    • AS/NZS 3548
    • VCCI-B
    • ICES-003
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • IBM 46XX
    • USB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 14 V DC
Extended Details
