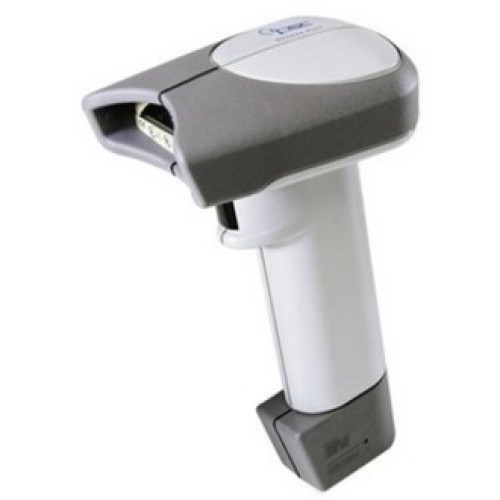

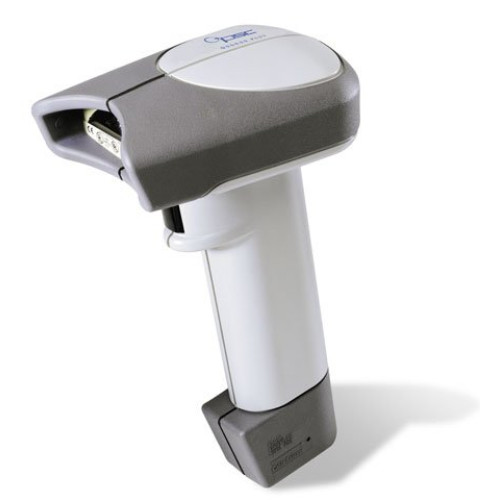

Datalogic QS6000 Plus Barcode Scanner
Part #: QS6-2100-02 | SKU: 17291

The QuickScan 6000 Plus Handheld Scanner offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class the QS6000 Plus speeds retail checkout. And its 13 inch (33 cm) depth of field with 100 percent UPC labels extends the user's working range. Support for all popular POS interfaces and keyboard wedges is standard. The QS6000 Plus reads all major bar code symbologies auto-discriminating between codes. Full support is also included for the UPC-EAN family add-ons and other types of code extensions.

Datalogic QS6000 Plus Barcode Scanner

Part Details: QS6000 Plus Handheld Scanner (RS232, 12F 9P, Auto Stand, Power Supply and CD) - Color: Gray

Need a different version of the Datalogic QS6000 Plus Barcode Scanner? View all 51 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	QS6000 Plus
Product Condition	No
Specialty Encoding	None

QS6000 Plus Specs (pdf)

Technical Information

Scan Rate: 42 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-8 Add-on P2/P5
- JAN-13 Add-on P2/P5
- Code 128
- EAN-128
- Pharmacode 39
- Interleaved 2 of 5
- RSS On Selected Models
- Codabar
- Code 93
- Standard 2 of 5
- IATA
- MSI/PLESSEY
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-8 Add-on P2/P5
- JAN-13 Add-on P2/P5
- Code 128
- EAN-128
- Pharmacode 39
- Interleaved 2 of 5
- RSS On Selected Models
- Codabar
- Code 93
- Standard 2 of 5
- IATA
- MSI/PLESSEY
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1" - 3"@5 mil
- 0.50" - 6"@7.50 mil
- 0 mil - 9"@10 mil
- 0 mil - 13"@13 mil
- 20 ft@20 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: QS6000 Plus
Product Name: QuickScan QS6000 Plus Barcode Reader
Product Line: QuickScan

Physical Characteristics

Height: 6.5"
Width: 2.8"
Depth: 4.2"
Color: Gray
Weight (Approximate): 6.35 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Package Contents:
- QS6000 Barcode Reader
- 12 feet DB9pin Cable
- Power Supply
- CD
- Auto Sense Stand
- QS6000 Barcode Reader
- 12 feet DB9pin Cable
- Power Supply
- CD
- Auto Sense Stand
Certifications & Standards:
- Electrical:
- Complies to Gost R
- TÜV
- UL
- cUL
- Emissions:
- Complies to FCC A
- EN 55022 B
- BCIQ CNS 13438
- AS/NZS 3548
- VCCI B
- Laser Classification:
- CDRH Class IIa
- Caution: Laser Radiation do not stare into beam
- IEC 60825 Class 1 & 2
Additional Information:
- Scan system: Electromagnetic dithering mirror
- Pitch: ±65 Degree
- Skew: ±55 Degree
- Scan angle: 46 Degree
- AutoSense stand for hands free operation
- Ideal for:
- Retail Applications
- Health Care
- Inventory
- Office Automation
- Light Industrial

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 14 V DC

Extended Details
