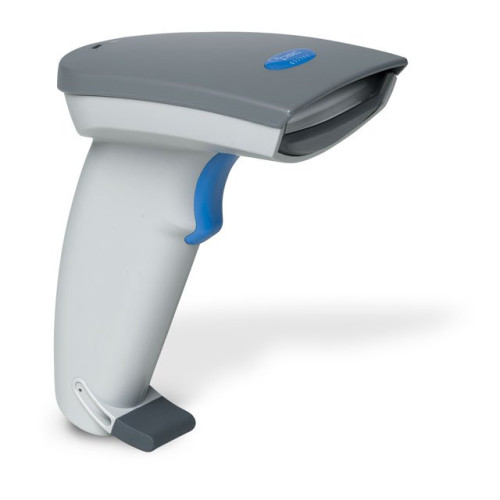

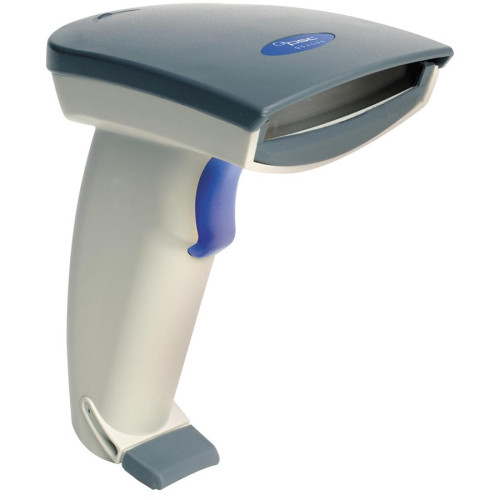

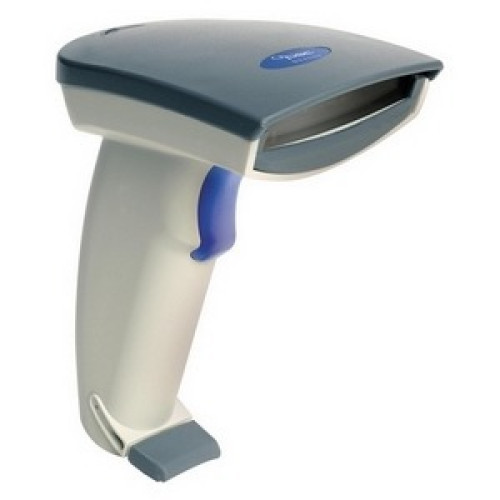

Datalogic QS2500 Barcode Scanner
Part #: QS25-3209-01 | SKU: 26138

The QuickScan QS2500 Linear Imager Handheld Scanner is the newest member of the QuickScan product family. For retail office and light-industrial applications the QS2500's 200 scans-per-second linear imager scan engine provides snappy reading performance and a mid-range depth-of- field. And the QS2500 also reads poorly printed bar code labels quickly and easily.Loaded with Features for Today and TomorrowThe QS2500 is capable of reading a wide range of bar code symbologies including Reduced Space Symbology (RSS) and PDF417 allowing you flexibility in reading now and in the future. It also features flash memory for easy software upgrades along with programming and label editing. Its enclosure is lightweight and ergonomic and has an available hands-free tabletop stand.

Datalogic QS2500 Barcode Scanner

Part Details: QuickScan QS2500 Linear Imager (USB, 12 Foot Cable POT, CD and Hands-Free Stand) - Color: Black

Need a different version of the Datalogic QS2500 Barcode Scanner? View all 45 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	QS2500
Product Condition	No
Specialty Encoding	None

QS2500 Specs (pdf)

Technical Information

Scan Rate: 200 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- Code 11
- Code 16K
- Code 39
- Code 93
- Code 128
- Codabar
- EAN-8
- EAN-13
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI/PLESSEY
- Pharmacode 39
- PDF417 with Audio Assist
- RSS-14
- RSS-14 Stacked
- RSS-14 Expanded
- RSS-Limited
- Telepen
- UPC-A
- UPC-E
- UK Plessey
- JAN-8
- JAN-13
- UPC/EAN 5 Digit Add-on
- UPC/EAN 2 Digit Add-on
- Code 128 EAN Add-ons
- Code 11
- Code 16K
- Code 39
- Code 93
- Code 128
- Codabar
- EAN-8
- EAN-13
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI/PLESSEY
- Pharmacode 39
- PDF417 with Audio Assist
- RSS-14
- RSS-14 Stacked
- RSS-14 Expanded
- RSS-Limited
- Telepen
- UPC-A
- UPC-E
- UK Plessey
- JAN-8
- JAN-13
- UPC/EAN 5 Digit Add-on
- UPC/EAN 2 Digit Add-on
- Code 128 EAN Add-ons
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1" - 4.50"@5 mil
- 0.50" - 8.50"@10 mil - Label Density
- 0.50" - 11"@13 mil - Label Density
- 1" - 16"@20 mil - Label Density
- 2" - 28"@40 mil - Label Density

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: QS2500
Product Name: QuickScan QS2500 Barcode Reader
Product Line: QuickScan

Physical Characteristics

Height: 7.3"
Width: 2.9"
Depth: 4.5"
Color: Black
Weight (Approximate): 6.30 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Package Contents:
- QuickScan QS2500 Linear Imager Barcode Reader
- 12' Cable
- CD
- Hands-free Stand
- QuickScan QS2500 Linear Imager Barcode Reader
- 12' Cable
- CD
- Hands-free Stand
Additional Information: USB Keyboard Wedge

Warranty

Limited Warranty: 5 Year
