Datalogic Barcode Scanner and Mobile Handheld Computer

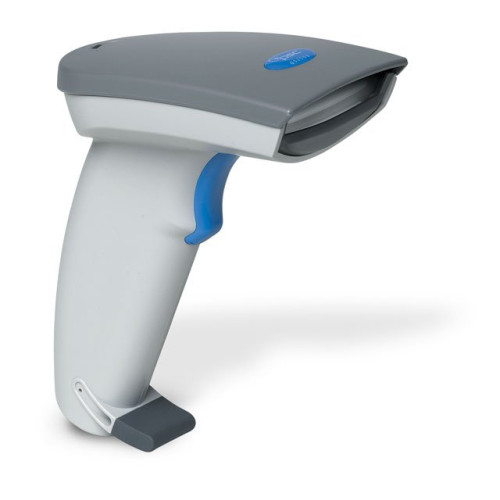

Datalogic QS2500 Barcode Scanner
Part #: QS25-1300-00R | SKU: 62844

The QuickScan QS2500 Linear Imager Handheld Scanner is the newest member of the QuickScan product family. For retail office and light-industrial applications the QS2500's 200 scans-per-second linear imager scan engine provides snappy reading performance and a mid-range depth-of- field. And the QS2500 also reads poorly printed bar code labels quickly and easily.Loaded with Features for Today and TomorrowThe QS2500 is capable of reading a wide range of bar code symbologies including Reduced Space Symbology (RSS) and PDF417 allowing you flexibility in reading now and in the future. It also features flash memory for easy software upgrades along with programming and label editing. Its enclosure is lightweight and ergonomic and has an available hands-free tabletop stand.

Datalogic QS2500 Barcode Scanner

Part Details: Scan, QS2500, RS232 Single Interface, Black, Requires Cable and Power Supply. RoHS Compliant.

Need a different version of the Datalogic QS2500 Barcode Scanner? View all 45 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	QS2500
Product Condition	No
Specialty Encoding	None

QS2500 Specs (pdf)

Technical Information

Barcode Dimension: 2D
Scan Pattern: Linear
Scan Rate: 200 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Linear
Barcode Symbology Supported:
- UPC A
- UPC E
- EAN 8
- EAN 13
- JAN 8 (Including add-ons P2/P5)
- JAN 13 (Including add-ons P2/P5)
- Code 128
- Code 93
- Pharmacode 39
- Code 39
- Codabar
- Interleaved 2 of 5
- Industrial 2 of 5
- Matrix 2 of 5
- GS1 Databar (RSS-14, RSS-14 Stacked, RSS Expanded and RSS Limited)
- MSI/Plessey
- UK/Plessey
- Telepen
- Code 16K
- Code 11
- PDF-417 with audio assist
- UPC A
- UPC E
- EAN 8
- EAN 13
- JAN 8 (Including add-ons P2/P5)
- JAN 13 (Including add-ons P2/P5)
- Code 128
- Code 93
- Pharmacode 39
- Code 39
- Codabar
- Interleaved 2 of 5
- Industrial 2 of 5
- Matrix 2 of 5
- GS1 Databar (RSS-14, RSS-14 Stacked, RSS Expanded and RSS Limited)
- MSI/Plessey
- UK/Plessey
- Telepen
- Code 16K
- Code 11
- PDF-417 with audio assist
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1" - 4.50"@5 mil
- 50 mil - 8.50"@10 mil
- 0.50" - 11"@13 mil - 100% UPC
- 1" - 16"@20 mil
- 2" - 28"@40 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: QS2500
Product Name: QS2500 Barcode Reader
Product Line: QuickScan

Physical Characteristics

Height: 7.3"
Width: 2.9"
Depth: 4.5"
Color: Black
Weight (Approximate): 6.30 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- Electrical:
- Complies to UL and cUL
- Emissions:
- Complies to FCC-A
- EN 55022-B
- VCCI-A
- Laser Classification:
- IEC 60825 Class 1 LED
- Restriction of Hazardous Substances:
- Complies to EU RoHS
Additional Information:
- Supported Interfaces:
- RS-232
- Keyboard Wedge
- Wand Emulation
- USB
- IBM 46XX
- IBM USB

Extended Details
