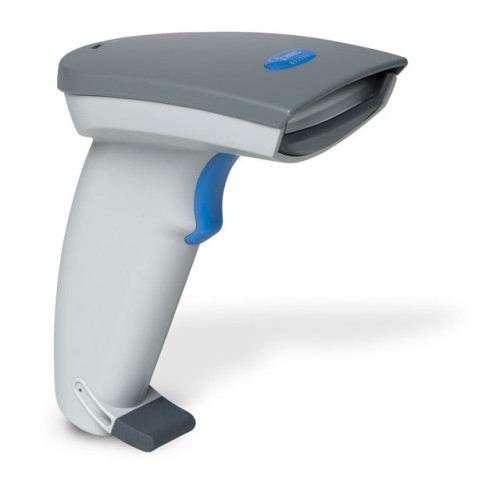

Datalogic QS2500 Barcode Scanner
Part #: QS25-1100 | SKU: 23236

The QuickScan QS2500 Linear Imager Handheld Scanner is the newest member of the QuickScan product family. For retail office and light-industrial applications the QS2500's 200 scans-per-second linear imager scan engine provides snappy reading performance and a mid-range depth-of- field. And the QS2500 also reads poorly printed bar code labels quickly and easily.Loaded with Features for Today and TomorrowThe QS2500 is capable of reading a wide range of bar code symbologies including Reduced Space Symbology (RSS) and PDF417 allowing you flexibility in reading now and in the future. It also features flash memory for easy software upgrades along with programming and label editing. Its enclosure is lightweight and ergonomic and has an available hands-free tabletop stand.

Datalogic QS2500 Barcode Scanner

Part Details: Datalogic QuickScan QS2500 Bar Code Reader - Wired - Imager

Need a different version of the Datalogic QS2500 Barcode Scanner? View all 45 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	QS2500
Product Condition	No
Specialty Encoding	None

QS2500 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 5 mil(s)
Symbologies Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- UPC P5 Add-ons
- UPC P2 Add-ons
- Code 128
- Codabar
- Pharmacode 39
- Code 93
- Interleaved 2 of 5
- Industrial 2 of 5
- Matrix 2 of 5
- Code 39
- Code 11
- Code 16K
- UK Plessey
- MSI/PLESSEY
- Telepen
- UK Plessey
- RSS-14
- RSS-14 Stacked
- RSS-14 Expanded
- RSS-Limited
- PDF417 with Audio Assist
Scanner Type: Imager
Scan Rate: 200 Scans/sec
Interface Options: RS-232
Scan Pattern: Linear
Depth of Field:
- 1 - 4.5"@5mils
- 0.5 - 8.5"@10mils
- 0.5 - 11"@13mils - 100 % UPC
- 1 - 16"@20mils
- 2 - 28"@40mils

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: QuickScan
Product Name: QuickScan QS2500 Barcode Scanner

Physical Characteristics

Dimensions: 7.3" (185.42mm) x 2.9" (73.66mm) x 4.5" (114.3mm)
Weight: 6.3 oz - Cable Not Included
Color: Gray

Agency Approvals

Agency Approvals:
- UL
- cUL
- FCC-A EN 55022-B
- VCCI-A
- CDRH Class IIa
- IEC 60825 Class 1
- IEC 60825 Class 2
- FCC-AEN 55022-B

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 45Â°C (113Â°F) Operating
- -30Â°C (-22Â°F) to 65Â°C (149Â°F) Storage
Humidity: 5 to 95% Operating Non-condensing

Warranty

Manufacturer Warranty: 5 Year(s)
