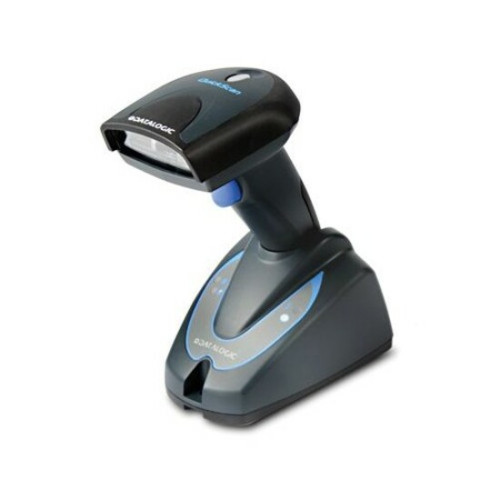

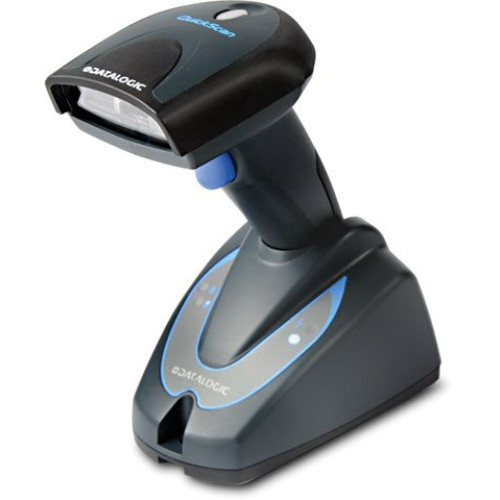

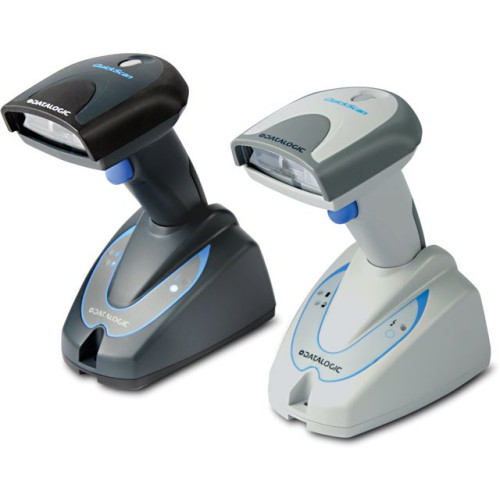

Datalogic QuickScan I: QM2100 Barcode Scanner
Part #: QM2130-BK-910K1 | SKU: 36710

The QuickScan I: QM2100 reader features Datalogic's cordless STAR-System, the market's most secure and reliable system for 433/910 MHz narrow band communications. Datalogic's STAR radio system is fast, easy to use and guaranteed Wi-Fi interference free. The Datalogic QuickScan I: QM2100 reader's 40 ft / 12 m radio range capability provides a wide working area eliminating the restraints of cabled devices, making the workplace safer and more efficient. Solid-state electronics ensure superior reliability and durability versus laser devices and provides for fast and snappy reading performance. Standard multi-interface capability provides host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation. Convenient Plug & Scan kits provide for easy installation and the Scan-While-Charging feature combined with a long lasting user replaceable lithium-Ion battery allows for hands-free reading while simultaneously charging the battery. The Datalogic patented Batch Mode capability allows for the collection of data when out-of-range from the base station.

Datalogic QuickScan I: QM2100 Barcode Scanner

Part Details: 910 MHz, Kit, USB, Linear Imager, Black (Kit inc. Imager and Base Station and USB Cable 90A051945.)

Additional Information

Color No
Communication Type No
Connectivity No
Form Factor No
Included Cables USB
Manufacturer No
Model Name QuickScan I: QM2100
Product Condition No
Ruggedness General Purpose
Scanner Capability 1D
Scanner Type No
Specialty Encoding None

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 235 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 39.37 ft
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • 2/5 family
    • EAN/UPC
    • Code 128
    • EAN-128
    • Code 93
    • Codabar
    • Telepen
    • Plessey
    • Code 49
    • MSI
    • Delta Code
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • Code 39 (plus Code 32 Cip 39)
    • GS1 Databar
    • 2/5 family
    • EAN/UPC
    • Code 128
    • EAN-128
    • Code 93
    • Codabar
    • Telepen
    • Plessey
    • Code 49
    • MSI
    • Delta Code
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • Code 39 (plus Code 32 Cip 39)
    • GS1 Databar
  • Maximum Scan Resolution: 4 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QM2130
  • Product Name: QuickScan Mobile QM2130 Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Color: Black
  • Weight (Approximate): 6.06 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • QuickScan Mobile QM2130 Barcode Reader
    • Base
    • USB Cable
    • QuickScan Mobile QM2130 Barcode Reader
    • Base
    • USB Cable
  • Certifications & Standards:
    • Protection Class:
    • IP30
    • Restriction of Hazardous Substances:
    • EU RoHS
    • LED Safety Class:
    • Class 1 EN 60825-1
  • Additional Information:
    • Supported Interfaces:
    • USBSerialKeyboard WedgeWand Emulation

Battery Information

  • Number of Batteries Supported: 1
  • Battery Chemistry: Lithium Ion (Li-Ion)

Power Description

  • Input Voltage: 5 V DC

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Radio Frequency: Yes
Extended Details
