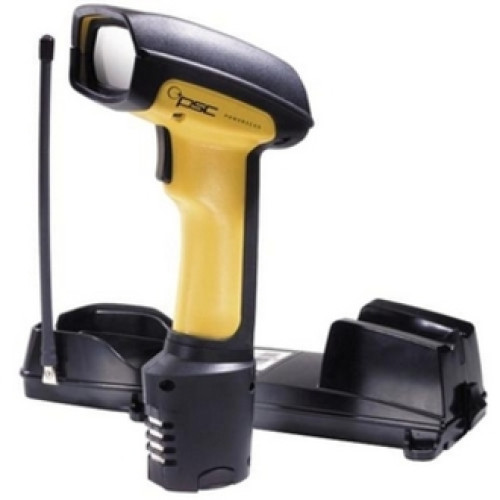

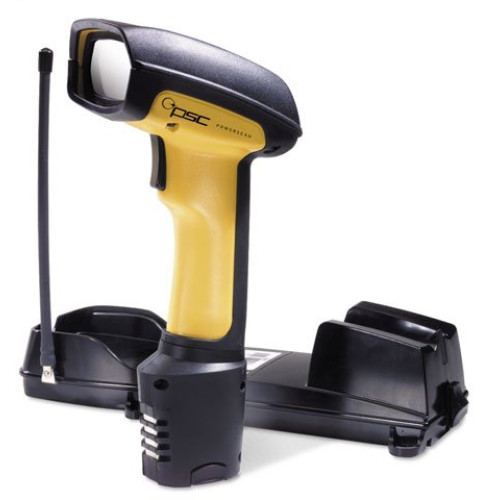

Datalogic PowerScan RF Barcode Scanner
Part #: PSRF-8000 | SKU: 3197

Are restrictive interface cables keeping you from doing business the way you want? Are you restricted to scanning only in the 25.0' (7.62m) area around your host terminal? Well not anymore! With the PSC PowerScan RF wireless scanner you now have the freedom to go where the work is not the other way around. Now you only have to take the 27.5 oz. (0.8 kg) PowerScan RF scanner to the 500 lb. (227 kg) pallet; not the pallet to the scanner. Utilizing the latest in Radio Frequency (RF) technology the PowerScan RF has a range of up to 150.0' (45.7 m). This allows you the freedom to scan pallets at the other end of the loading dock or boxes at the end of a warehouse aisle up to 150.0 (45.7 m) from your fork truck. Its unique acknowledgment tone lets you know that your data transmission was successful.

Datalogic PowerScan RF Barcode Scanner

Part Details: PowerScan RF Industrial Handheld Bar Code Scanner (Universal Keyboard Wedge and USB Interfaces, 915 Mhz with Battery - Requires Base)

Need a different version of the Datalogic PowerScan RF Barcode Scanner? View all 13 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	PowerScan RF
Product Condition	No
Specialty Encoding	None

PowerScan RF Specs (pdf)

Technical Information

Scan Rate: 37 scan/s
Connectivity Technology: Wireless
Scanning Distance: 150.92 ft
Light Source: Laser
Barcode Symbology Supported:
- UPC
- EAN
- Code 39
- Codabar
- Pharmacode 39
- Code 39 Full ASCII
- Code 128
- EAN-128
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- MSI/PLESSEY
- JAN
- UPC
- EAN
- Code 39
- Codabar
- Pharmacode 39
- Code 39 Full ASCII
- Code 128
- EAN-128
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- MSI/PLESSEY
- JAN
Maximum Scan Resolution: 7.50 mil
Depth of Field:
- 3" - 6"@5 mil - Code 39
- 2" - 10"@7.50 mil - Code 39
- 1" - 16"@10 mil - Code 39
- 0.50" - 27"@15 mil - Code 39
- 0.50" - 36"@20 mil - Code 39
- 5" - 48"@40 mil - Code 39
- 6" - 60"@55 mil - Code 39

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Name: PowerScan SR RF Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 9.4"
Width: 2.8"
Depth: 4"
Color:
- Yellow
- Black
Weight (Approximate): 12.70 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- Electrical:
- TUV
- UL
- cUL
- Emissions:
- FCC-A
- EN 55022-B
- BCIQ CNS13438
- AS/NZS 3548
- Laser classification:
- CDRH Class 2
- IEC 60825 Class 2
- Radio:
- ETSI-ETS-300 220
- FCC Part 15.249
Additional Information:
- Supported Interfaces:
- USBKeyboard Wedge

Battery Information

Battery Chemistry: Nickel Metal Hydride (NiMH)

Network & Communication

Bluetooth: Yes

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 110 V AC
