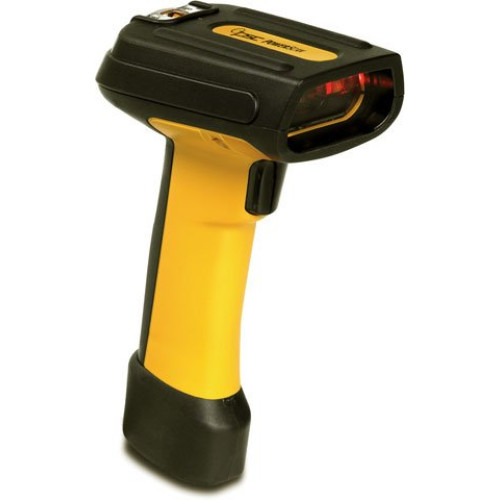

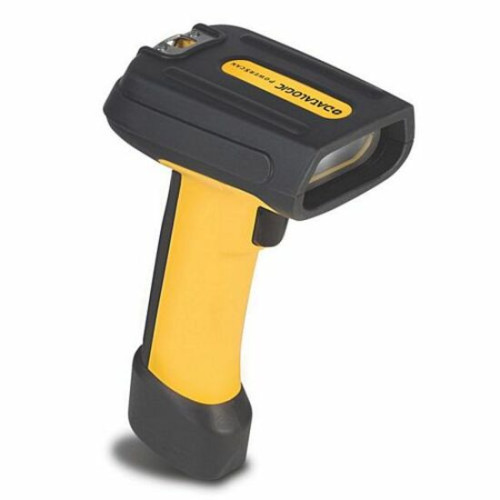

Datalogic PowerScan 7000 Barcode Scanner
Part #: PS70-1110101-146 | SKU: 48342

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) has been designed from the ground up to be the most rugged, durable and reliable industrial handheld scanner on the market. It is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications. The overmold covers all of the likely drop contact points, adding an extra degree of shock protection for the scanner. In fact the scanner can withstand 50 drops of two meters (6.5') to concrete. The scanner is sealed to dust and water at an industry leading IP65 rating. It can operate between -30� C and 50� C. These specifications are not surpassed by any competitive scanner.

Datalogic PowerScan 7000 Barcode Scanner

Part Details: Datalogic PowerScan 7000 SRI Bar Code Reader - Wired

Need a different version of the Datalogic PowerScan 7000 Barcode Scanner? View all 66 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	PowerScan 7000
Product Condition	No
Specialty Encoding	None

PowerScan 7000 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 4 mil(s)
Symbologies Supported:
- Codabar
- Code 93
- Code 128
- Code 128 Add-ons
- Code 128 ISBT
- EAN-128
- Italian Pharmacode 39
- MSI/PLESSEY
- Interleaved 2 of 5
- Standard 2 of 5
- RSS-14
- RSS-Expanded
- UPC/EAN/JAN
- PDF
Scanner Type: Linear Imager
Interface Options:
- RS-232
- Keyboard Wedge
- USB
- Wand Emulation
- IBM SurePOS USB
- IBM 46XX
Interface Connectivity: Corded
Input Voltage Range: 4 to 14 V DC
Power Supply: External Included
Depth of Field:
- 3 - 6"@5mils
- 2 - 16"@7.5mils
- 1.5 - 22"@10mils
- 1 - 30"@13mils
- 1 - 42"@20mils
- 2 - 80"@55mils

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: PowerScan
Product Name: PowerScan 7000 SRI Barcode Scanner

Physical Characteristics

Dimensions: 7.5" (190.5mm) x 3.0" (76.2mm) x 4.5" (114.3mm)
Weight: 11 oz - Without Cable
Color:
- Yellow
- Black

Agency Approvals

Agency Approvals:
- Gost R
- UL
- cUL
- EN60950
- FCC-A
- EN 55022-B
- CISPR22
- VCCI
- CDRH Class II
- IEC 60825 Class 2
- RoHS Compliant

Other

Package Contents:
- PowerScan 7000 SRI Barcode Scanner
- 110 VAC Power Supply PR Wall Mount
- Basic Kit with CD
- Pointer
Cables Included: RS-232

Environmental Conditions

Temperature:
- -30Â°C (-22Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 4 Year(s)
