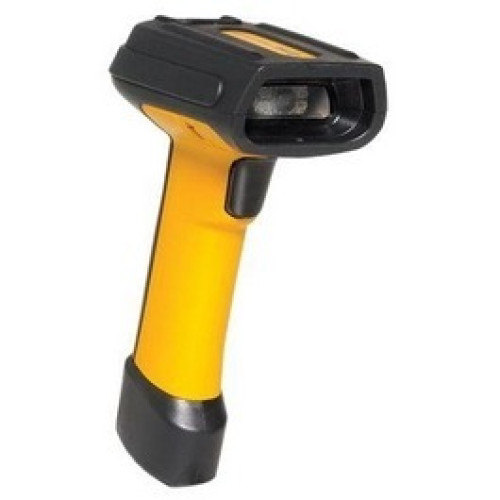

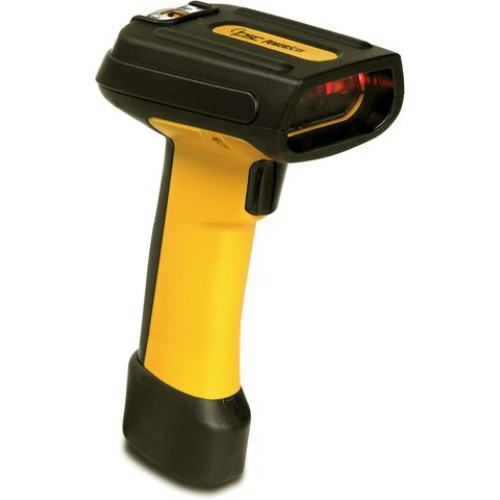

Datalogic PowerScan 7000 Barcode Scanner
Part #: PS70-1010000 | SKU: 20317

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) has been designed from the ground up to be the most rugged, durable and reliable industrial handheld scanner on the market. It is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications. The overmold covers all of the likely drop contact points, adding an extra degree of shock protection for the scanner. In fact the scanner can withstand 50 drops of two meters (6.5') to concrete. The scanner is sealed to dust and water at an industry leading IP65 rating. It can operate between -30? C and 50? C. These specifications are not surpassed by any competitive scanner.

Datalogic PowerScan 7000 Barcode Scanner

Part Details: Datalogic PowerScan 7000 SRI Bar Code Reader - Wired

Need a different version of the Datalogic PowerScan 7000 Barcode Scanner? View all 66 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	PowerScan 7000
Product Condition	No
Specialty Encoding	None

PowerScan 7000 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Rate: 500 scan/s
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: Linear
Barcode Symbology Supported:
- Codabar
- Code 93
- Code 128
- Code 128 Add-ons
- Code 128 ISBT
- EAN-128
- Italian Pharmacode 39
- MSI/PLESSEY
- Interleaved 2 of 5
- Standard 2 of 5
- RSS-Expanded
- UPC/EAN/JAN
- PDF 417
- Codabar
- Code 93
- Code 128
- Code 128 Add-ons
- Code 128 ISBT
- EAN-128
- Italian Pharmacode 39
- MSI/PLESSEY
- Interleaved 2 of 5
- Standard 2 of 5
- RSS-Expanded
- UPC/EAN/JAN
- PDF 417
Maximum Scan Resolution: 4 mil
Depth of Field:
- 3" - 6"@5 mil
- 2" - 16"@7.50 mil
- 1.50" - 22"@10 mil
- 1" - 30"@13 mil
- 1" - 42"@20 mil
- 2" - 80"@55 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 7000 SRI
Product Name: PowerScan 7000 SRI Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 7.5"
Width: 3"
Depth: 4.5"
Color:
- Yellow
- Black
Weight (Approximate): 11 oz

Interfaces/Ports

Host Interface: Serial

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- PowerScan 7000 SRI Barcode Reader
- Basic Kit with CD
- PowerScan 7000 SRI Barcode Reader
- Basic Kit with CD
Certifications & Standards:
- Electrical:
- Gost R
- UL
- cUL
- EN60950
- Emissions:
- FCC-A
- EN 55022-B
- CISPR22
- VCCI
- Laser classification:
- CDRH Class II
- IEC 60825 Class 2
- Restriction of Hazardous Substances:
- RoHS Compliant
Additional Information:
- Supported Interface:
- RS 232

Warranty

Limited Warranty: 4 Year

Power Description

Input Voltage: 14 V DC

Extended Details
